SKU:
CN VISCC010015050R
€ 60,59
1-2 weeks delivery time
-
+

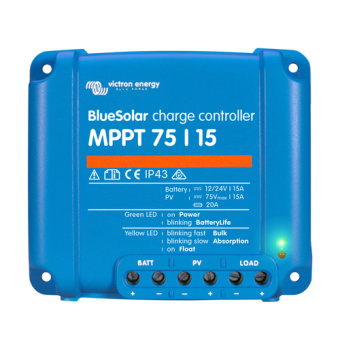

The Victron BlueSolar MPPT 75/15 is a compact, high-efficiency MPPT solar charge controller for 12V/24V systems with up to 15A output and 75V PV input. Designed for systems up to 440W, it features ultra-fast maximum power point tracking, an intelligent BatteryLife load management algorithm, and VE.Direct communication for monitoring and configuration.
- Description
- Ask a Question
-
Victron Energy BlueSolar MPPT 75/15 Charge Controller 12/24V-15A with Load Output & BatteryLife
The BlueSolar MPPT 75/15 provides ultra-fast tracking and multi-stage battery charging for small to mid-size off-grid systems. With programmable settings, automatic load disconnect, and VE.Direct communication, it ensures efficient solar energy usage and battery protection. BatteryLife intelligently manages load to extend battery lifespan, and the controller is compatible with flooded, AGM, GEL, and lithium (with BMS) batteries.
Parameter Specification Model BlueSolar MPPT 75/15 System Voltage 12V / 24V (auto-detect) Rated Charge Current 15 A Max PV Open Circuit Voltage 75 V Max PV Power (12V) 220 W Max PV Power (24V) 440 W Max PV Short Circuit Current 15 A Peak Efficiency 98% Charge Algorithm Multi-stage adaptive (Bulk, Absorption, Float) Absorption Voltage 14.4V / 28.8V (adjustable) Float Voltage 13.8V / 27.6V (adjustable) Low Voltage Disconnect 11.1V / 22.2V or BatteryLife logic Reconnect Voltage 13.1V / 26.2V or BatteryLife logic Temperature Compensation -16 mV/°C (12V), -32 mV/°C (24V) Load Output Yes (short circuit proof) Communication VE.Direct (for PC, GX devices, Bluetooth dongle) Self Consumption (load on) 12V: 25 mA / 24V: 15 mA Self Consumption (load off) 10 mA / 8 mA Operating Temperature -30°C to +60°C (full rated output to 40°C) Humidity Up to 95%, non-condensing Enclosure IP43 (electronics), IP22 (connection area) Terminals 6 mm² / AWG10 Dimensions 100 × 113 × 50 mm Weight 0.6 kg Certifications IEC 62109-1, UL 1741, CSA C22.2
Key Features:
- 15A MPPT charge controller for 12V/24V systems
- Up to 440W array support with 75V open circuit input
- BatteryLife algorithm extends battery service life
- VE.Direct communication for full configuration and monitoring
- Short circuit, over-temperature, and reverse polarity protection
Applications:
- Off-grid solar systems up to 440W
- Battery maintenance and solar-powered automation
- Remote power for lighting, sensors, and small DC devices
Looking for a different Victron Blue Solar Charge Controllers? Explore our full Victron BlueSolar MPPT product range.
Documents
Victron Energy BlueSolar MPPT 75-10, 75-15, 100-15, 100-20 Size: 591,2 KbVictron MPPT 75 15 Manual Size: 11,8 Mb -
