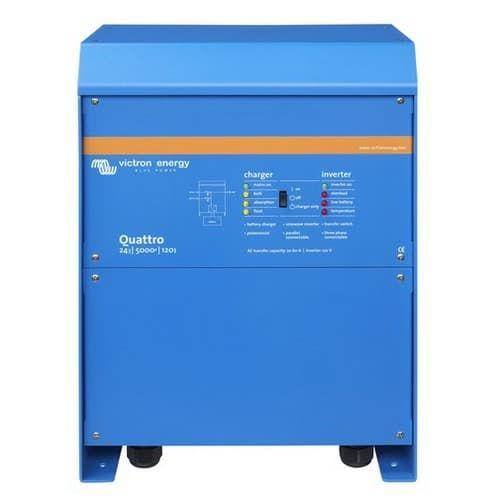

Victron Energy QUA485021102 - Quattro 48/5000/70-100/100 120V UL Inverter/Charger

SKU: CN VIQUA485021102

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Victron Quattro 48/5000/70-100/100 (UL 1741) is a high-capacity 5 kVA inverter/charger designed for demanding 48V energy systems. It delivers 4000 W of continuous power, features a powerful 70 A adaptive battery charger, and supports dual 100 A AC inputs. With support for split-phase and three-phase configurations, VE.Bus communication, and full UL 1741 certification, it’s ideal for professional marine, off-grid, or backup installations requiring robust and compliant power management.

Description
Ask a Question

Victron Energy Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger (UL 1741 Certified) is a reliable, expandable, and certified inverter/charger system designed for 48V battery configurations. With dual AC inputs, smart charging, and parallel system support, this UL-listed model is perfect for advanced off-grid, marine, and backup power systems.

Main Features:

5,000 VA / 4,000 W continuous inverter output (pure sine wave)
70 A adaptive 4-stage battery charger (compatible with Li-ion, AGM, gel, flooded)
Dual 100 A AC inputs with automatic transfer switching
Two AC outputs: main UPS output and secondary for non-critical loads
PowerAssist and PowerControl for load management and input boost
Parallel, split-phase, and three-phase operation (up to 6 units per phase)
VE.Bus communication for remote configuration and monitoring
UL 1741 certified – suitable for North American installations

Technical Specifications:

Function	Specification
Model	Quattro 48/5000/70-100/100 120V (UL 1741)
DC Input Voltage Range	38 – 66 V
AC Output Voltage / Frequency	120 V ±2% / 60 Hz ±0.1%
Continuous Output Power (25°C)	5000 VA / 4000 W
Output Power at 40°C / 65°C	3700 W / 3000 W
Peak Power	10,000 W
Maximum Efficiency	94%
Zero Load Power (Normal / AES / Search)	30 W / 25 W / 10 W
Battery Charge Voltages (Absorption / Float / Storage)	57.6 V / 55.2 V / 52.8 V
Charger Current (House Battery)	70 A
Battery Temperature Sensor	Included
Transfer Switch	2x 100 A
Auxiliary Output	50 A (disconnects if no external AC)
Programmable Relays	3x – for alarms, generator start, etc.
Operating Temperature	-40 to +65 °C
Humidity (non-condensing)	Max 95%
Enclosure Material / Color	Aluminium, Blue (RAL 5012)
Ingress Protection	IP21
Dimensions (H x W x D)	470 x 350 x 280 mm (18.5 x 13.8 x 11.0 in)
Weight	34 kg (75 lbs)
Battery Connection	4 x M8 bolts (2 positive, 2 negative)
AC Connection	Screw terminals, 13 mm² (6 AWG)
Certifications	UL 1741, EN-IEC 60335-1/-2-29, EN-IEC 62109-1

Remote Monitoring & Accessories:

VE.Bus Smart Dongle – Adds Bluetooth monitoring and temperature/voltage sensing
VictronConnect App – Local configuration and diagnostics
MK3-USB Interface – For VE.Configure setup via PC
Cerbo GX / Ekrano GX – For complete system control and remote access
VRM Portal – Free cloud-based dashboard with alerts, graphs, and settings

Applications: Ideal for North American residential and mobile energy systems requiring high-quality inverter performance, robust charger functionality, and full UL compliance for grid-interactive and off-grid configurations.

Part Number: QUA485021102
Brand: Victron Energy
