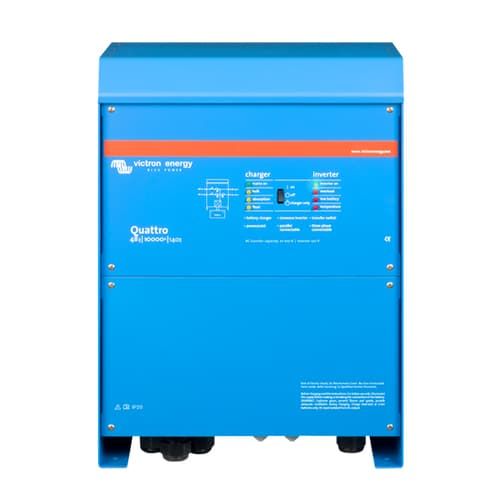

Victron Energy QUA483100102 - Quattro 48/10000/140-100/100 120V UL Inverter/Charger

SKU: CN VIQUA483100102

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Victron Quattro 48/10000/140-100/100 (UL 1741) is a premium 10 kVA inverter/charger designed for large-scale 48V battery systems. It offers dual 100 A AC inputs, a powerful 140 A battery charger, and 8000 W of continuous inverter output. With automatic transfer switching, PowerAssist, and VE.Bus communication, this UL-certified unit is ideal for marine, off-grid, and commercial backup power systems with advanced integration and remote management needs.

Description
Ask a Question

Victron Energy Quattro 48/10000/140-100/100 120V VE.Bus Inverter/Charger (UL 1741 Certified) is the flagship model of Victron’s Quattro inverter/charger series, delivering unmatched power and flexibility for advanced 48V energy systems. With high-efficiency power conversion, intelligent charging, and full system integration, this unit is ideal for professional off-grid, marine, and backup power installations.

Main Features:

10,000 VA / 8000 W continuous pure sine wave output
Dual AC inputs (grid and generator) with automatic transfer switching (2x 100 A)
140 A adaptive 4-stage battery charger
Dual AC outputs: seamless UPS output and a secondary line for non-essential loads
PowerAssist and PowerControl for grid/generator support
Supports parallel, split-phase, and three-phase configurations (up to 6 units per phase)
Fully UL 1741 certified for compliance in North America
VE.Bus communication for remote monitoring and integration
Compatible with lithium-ion, AGM, gel, and flooded batteries

Technical Specifications:

Function	Specification
Model	Quattro 48/10000/140-100/100 120V (UL)
Input Voltage Range	38 – 66 V DC
Output Voltage / Frequency	120 V ±2% / 60 Hz ±0.1%
Continuous Output Power at 25°C	10,000 VA / 8000 W
Output Power at 40°C / 65°C	6500 W / 4500 W
Peak Power	20,000 W
Maximum Efficiency	96%
Zero Load Power (Normal / AES / Search)	60 W / 40 W / 15 W
Battery Charge Voltage (Absorption / Float / Storage)	57.6 V / 55.2 V / 52.8 V
Charge Current (House Battery)	140 A
Charge Current (Starter Battery)	–
Battery Temperature Sensor	Included
Transfer Switch	2x 100 A
Auxiliary Output	50 A (disables without AC input)
Programmable Relays	3x (for alarms, genset start/stop, etc.)
Operating Temperature	-40 to +65 °C
Humidity (non-condensing)	Max 95%
Enclosure Material / Color	Aluminum, Blue (RAL 5012)
Ingress Protection	IP21
Dimensions (H x W x D)	572 x 488 x 344 mm (22.6 x 19.2 x 13.6 in)
Weight	58 kg (128 lbs)
Battery Connection	4 x M8 bolts (2 positive / 2 negative)
AC Connection	Screw terminals (13 mm² / 6 AWG)
Certifications	UL 1741, EN-IEC 60335-1/-2-29, EN-IEC 62109-1

Remote Monitoring & Accessories:

VE.Bus Smart Dongle – Bluetooth and battery sensing
VictronConnect App – Configuration and diagnostics on mobile/PC
MK3-USB Interface – Enables VE.Configure software access
Cerbo GX / Ekrano GX – Full system monitoring and control
VRM Portal – Free cloud-based dashboard with alerts and remote control

Applications: Designed for large-scale off-grid homes, yachts, backup systems, or commercial solar + storage solutions where UL 1741 compliance and high-performance energy conversion are required.

Part Number: QUA483100102
Brand: Victron Energy
