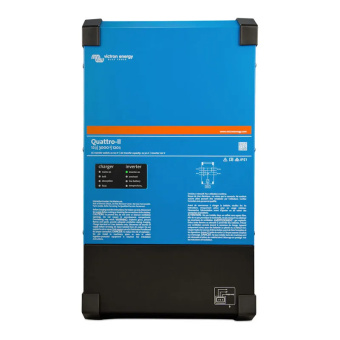

Victron Energy QUA242305130 - Quattro-II 24/3000/70-50/50 2x120V Inverter/Charger

SKU: CN VIQUA242305130

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Victron Quattro-II 24/3000/70-50/50 2x120V is a robust and flexible inverter/charger designed for 24V battery systems. It features 3000 VA of continuous inverter power, a 70 A smart charger, dual AC inputs with transfer switching, and split-phase output for 2x120V applications. With PowerAssist, PowerControl, and remote system integration via VE.Bus, it’s an ideal solution for RV, marine, and off-grid installations needing 120/240 V compatibility and high system reliability.

Description
Ask a Question

Victron Energy Quattro-II 24/3000/70-50/50 2x120V VE.Bus Inverter/Charger is a powerful and highly adaptable solution for 24V battery systems requiring 2x120V output support. It features seamless AC transfer between shore and generator sources, a 70 A adaptive charger, and smart inverter control with full monitoring and remote access. Designed for residential, marine, and mobile applications where split-phase compatibility and backup reliability are essential.

Main Features:

3000 VA / 2400 W continuous inverter output (pure sine wave)
Dual AC inputs with automatic transfer (shore and generator)
Dual AC outputs: UPS output and auxiliary output (only live with AC input)
70 A 4-stage adaptive charger (absorption, float, storage)
Supports split-phase (120/240 V) or single-phase (120 V) input/output
PowerControl and PowerAssist to manage limited grid/generator power (L1 input)
Parallel, split-phase, and 3-phase support via VE.Bus
Remote configuration via Cerbo GX, VictronConnect, and VRM Portal

Technical Specifications:

Function	Specification
Model	Quattro-II 24/3000/70-50/50 2x120V
DC Input Voltage Range	19 – 33 V
AC Output Voltage / Frequency	120 V ±2% / 60 Hz ±0.1%
Continuous Output Power at 25°C	3000 VA / 2400 W
Output Power at 40°C / 65°C	2200 W / 1700 W
Peak Power	5500 W
Maximum Efficiency	94%
Zero Load Power / AES / Search	11 W / 8 W / 4 W
AC Input (Split-phase / Single-phase)	180–280 V / 90–140 V (45–65 Hz)
Charge Voltages (Absorption / Float / Storage)	28.8 V / 27.6 V / 26.4 V
Max Charge Current	70 A
Battery Temperature Sensor	Yes
Transfer Switch	2x 50 A
Auxiliary Output	50 A per leg (only active with AC input)
Programmable Relay	Yes (120 V AC 4 A / 60 V DC 1 A)
VE.Bus Communication	Yes – for parallel, three-phase, and remote control
General Purpose Communication Ports	2x
Remote On/Off	Yes
Operating Temperature	-40 to +65 °C
Humidity (non-condensing)	Max 95%
Enclosure Material / Color	Steel, Blue (RAL 5012)
Ingress Protection	IP22
Dimensions (H x W x D)	579 x 319 x 168 mm (23 x 13 x 7 in)
Weight	22.5 kg (50 lbs)
Battery Connection	2 M8 bolts
AC Connection	Screw terminals, 21 mm² (4 AWG)
Certifications	EN-IEC 60335-1/-2-29, EN 55014-1/2, IEC 61000-6-1/2/3, IEC 61000-3-2/3

Remote Monitoring & Accessories:

VictronConnect App – Wireless setup and monitoring via Bluetooth (with Smart Dongle)
VE.Bus Smart Dongle – Adds Bluetooth and battery voltage/temp sensing
MK3-USB Interface – Connects to VE.Configure for advanced setup
Cerbo GX / Ekrano GX – Full monitoring, control, and internet connectivity
VRM Portal – Free cloud-based remote monitoring and alerts

Applications: Perfect for split-phase installations in RVs, boats, off-grid cabins, or backup energy systems where 24V battery banks are used and dual 120 V AC output is required.

Part Number: QUA242305130
Brand: Victron Energy
