SKU:
CN VIPMP482307010
€ 1.589,87
1-2 weeks delivery time
-
+

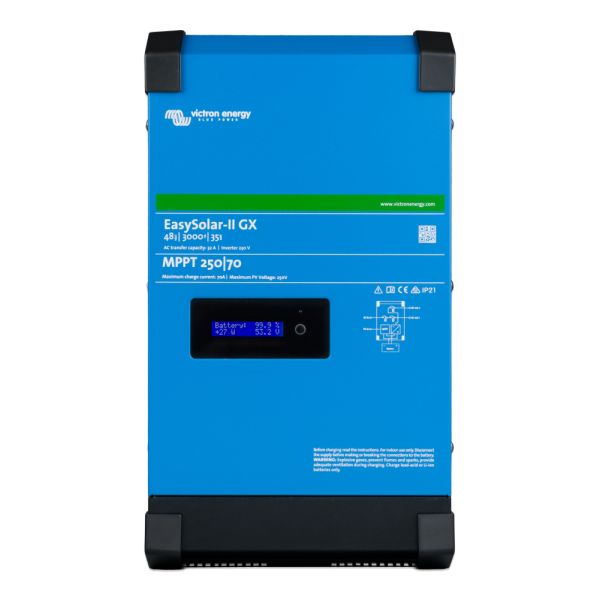

The Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX is a fully integrated solar energy solution, combining a 3 kVA MultiPlus-II inverter/charger, SmartSolar MPPT 250/70-Tr solar charge controller, and a GX communication device in one enclosure. With built-in Wi-Fi, advanced system monitoring, and support for high-voltage PV arrays, this all-in-one unit offers optimal flexibility and simplified installation for off-grid and hybrid systems.
- Description
- Ask a Question
-
Victron Energy EasySolar-II 48/3000/35-32 MPPT 250/70 GX (PMP482307010) is a compact, all-in-one inverter/charger designed for modern solar energy systems. It combines three essential Victron components in one enclosure:
- MultiPlus-II inverter/charger (3000 VA / 2400 W)
- SmartSolar MPPT 250/70-Tr charge controller for high-voltage PV input
- GX device with 2-line display, Wi-Fi, VE.Bus, VE.Direct, and Ethernet ports
Main Features:
- All-in-one system – Simplifies installation and reduces wiring complexity
- MPPT 250/70 solar controller – Supports up to 2000 W PV with 250 V open circuit
- Full connectivity – Wi-Fi, VE.Bus, VE.Direct, USB, Ethernet, and BMS-Can interfaces
- PowerAssist and PowerControl – Prevents overload of grid or generator input
- GX display and remote monitoring – View and configure system locally or via the VRM portal
Technical Specifications:
Model EasySolar-II 48/3000/35-32 GX MPPT 250/70 SKU PMP482307010 Battery Voltage 48 V Inverter Continuous Output 3000 VA / 2400 W Peak Power 5500 W Output Voltage / Frequency 230 VAC ±2% / 50 Hz ±0.1% Efficiency Up to 95% Zero Load Power 11 W (Search mode: 2 W) Charger Output 35 A Charge Voltages Absorption: 57.6 V, Float: 55.2 V, Storage: 52.8 V AC Input Voltage 187–265 VAC AC Input Frequency 45–65 Hz Transfer Switch 32 A MPPT Controller SmartSolar MPPT 250/70-Tr Max PV Power 2000 W Max PV Voltage 250 V (open circuit) Max MPPT Current 70 A MPPT Efficiency Up to 99% Interfaces Wi-Fi, VE.Bus, VE.Direct, USB, Ethernet, BMS-Can Battery Temperature Sensor Included Remote On/Off Yes Cooling Fan-assisted Protection Class IP21 Enclosure Material Aluminum, RAL 5012 Blue Dimensions (H × W × D) 499 × 268 × 237 mm Weight 26 kg
Typical Applications:
- Off-grid and backup solar energy systems
- Hybrid installations with self-consumption optimization
- Remote cabins, mobile homes, or marine environments
- Smart energy systems with lithium battery support
Additional Features:
- Compatible with lithium batteries (CAN-bus BMS)
- Programmable relay for alarm or generator control
- System data available via VRM Portal and VictronConnect app
Manufacturer: Victron Energy, The Netherlands
Documents
Victron Energy EasySolar-II GX Size: 329,6 Kb -
