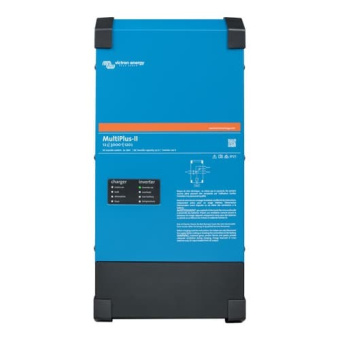

Victron Energy PMP242505110 - MultiPlus-II 24/5000/120-95 120V Inverter/Charger

SKU: CN VIPMP242505110

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Victron MultiPlus-II 24/5000/120-95 is a robust inverter/charger delivering 5000 VA of true sine wave AC power and a 120 A adaptive battery charger for 24V systems. With a 95 A transfer switch, dual AC outputs, and full VE.Bus support, this model supports split-phase, parallel, and three-phase operation. Designed for large off-grid, marine, or backup systems, it combines PowerAssist, PowerControl, and remote monitoring through Victron’s GX devices and VRM Portal.

Description
Ask a Question

Victron Energy MultiPlus-II 24/5000/120-95 120V VE.Bus Inverter/Charger is a high-capacity, professional-grade solution for energy conversion and battery charging in large 24V DC systems. With full support for AC loads, advanced load management, and remote system monitoring, it's ideal for demanding marine, off-grid, and industrial applications.

Main Features:

5000 VA / 4000 W continuous true sine wave inverter
120 A adaptive 4-stage charger for Lithium, AGM, Gel, and Flooded batteries
95 A high-speed AC transfer switch (<20 ms switchover)
Dual AC outputs: main UPS line and secondary output for non-essential loads
PowerAssist and PowerControl for smart power management
Supports parallel, split-phase, and three-phase installations (up to 6 units)
Compatible with solar charge controllers and grid-tie inverters
VE.Bus communication for system integration and remote monitoring
Optional external current sensor for up to 100 A grid/generator support

Technical Specifications:

Function	Specification
Model	MultiPlus-II 24/5000/120-95
Continuous Output Power (25°C)	5000 VA / 4000 W
Output Power at 40°C / 65°C	3700 W / 3000 W
Peak Power	9000 W
AC Output Voltage / Frequency	120 V ±2% / 60 Hz ±0.1%
DC Input Voltage Range	19 – 33 V
Max Battery Charging Current	120 A
Charge Voltages	Absorption: 28.8 V, Float: 27.6 V, Storage: 26.4 V
Zero-load Power / AES / Search Mode	24 W / 10 W / 3 W
Transfer Switch	95 A
Auxiliary Output	43 A
VE.Bus Communication	Yes – for remote configuration, system expansion
Remote On/Off	Yes
Operating Temperature	-40 to +60 °C (fan-assisted cooling)
Humidity (non-condensing)	Max 95%
Enclosure Material / Color	Steel, Blue (RAL 5012)
Ingress Protection	IP22
Dimensions (H x W x D)	627 x 350 x 150 mm (24.7 x 13.8 x 5.9 in)
Weight	29 kg (64 lbs)
Battery Connection	M8 bolts
AC Connection	35 mm² (2 AWG) screw terminal
Certifications	UL 458, EN-IEC 60335-1/-2-29, CSA 22.2 107.1-16
EMC Standards	EN 55014-1/-2, EN-IEC 61000-3-2/3, IEC 61000-6-1/2/3

Remote Monitoring & Accessories:

VE.Bus Smart Dongle – Bluetooth interface with voltage and temp sensing
VictronConnect App – Configure and monitor from smartphone or PC
MK3-USB Interface – For VE.Configure setup and firmware updates
Cerbo GX / Ekrano GX – Enables remote control and visualization
VRM Portal – Free online monitoring platform with alerts and remote settings

Applications: Ideal for high-demand 24V systems in off-grid installations, marine vessels, backup energy systems, and mobile applications requiring dual AC outputs and VE.Bus integration.

Part Number: PMP242505110
Brand: Victron Energy
