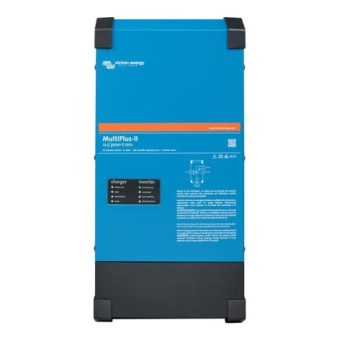

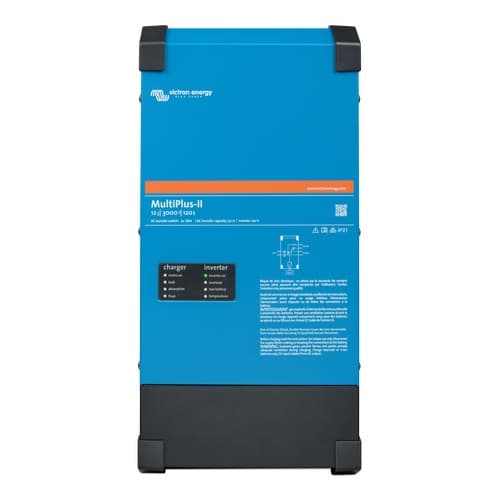

Victron Energy PMP242305132 - MultiPlus-II 24/3000/70-50 2x120V (UL458) Inverter/Charger

SKU: CN VIPMP242305132

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Victron MultiPlus-II 24/3000/70-50 2x120V (UL458) is a high-capacity inverter/charger offering dual 120V AC output, 3000 VA true sine wave power, and a 70 A adaptive battery charger. Ideal for 24V battery systems in mobile and off-grid environments, it features a 50 A transfer switch, PowerAssist technology, and VE.Bus communication for system integration and remote monitoring. Fully certified to UL458, it's designed for demanding marine, RV, and backup installations.

Description
Ask a Question

Victron Energy MultiPlus-II 24/3000/70-50 2x120V VE.Bus Inverter/Charger (UL458 Certified) is a powerful and flexible inverter/charger system for 24V DC battery setups. It delivers high-performance power conversion, intelligent charging, and system expansion capability with dual 120V output—making it suitable for advanced energy systems in mobile, marine, or backup applications.

Main Features:

3000 VA / 2400 W continuous output with true sine wave inverter
70 A adaptive 4-stage charger compatible with Lithium, AGM, Gel, and Flooded batteries
50 A high-speed AC transfer switch (<20 ms)
Dual 120V AC output – ideal for split-phase systems
PowerAssist and PowerControl to manage generator or shore power usage
Supports parallel, split-phase, and three-phase operation (up to 6 units per phase)
VE.Bus for advanced communication, monitoring, and control
Two AC outputs: UPS main line and secondary load output
Remote configuration and monitoring via VictronConnect app and VRM Portal

Technical Specifications:

Function	Specification
Model	MultiPlus-II 24/3000/70-50 2x120V (UL458)
Continuous Output Power (25°C)	3000 VA / 2400 W
Output Power at 40°C / 65°C	2200 W / 1700 W
Peak Power	5500 W
AC Output Voltage / Frequency	2x 120 V ±2% / 60 Hz ±0.1%
DC Input Voltage Range	19 – 33 V
Maximum Charging Current	70 A
Battery Charge Voltages	Absorption: 28.8 V, Float: 27.6 V, Storage: 26.4 V
Zero-load Power / AES / Search Mode	13 W / 9 W / 3 W
Transfer Switch Rating	50 A
Auxiliary Output	32 A
VE.Bus Communication	Yes – for parallel, split-phase, three-phase, remote monitoring
Operating Temperature	-40 to +60 °C (fan-assisted)
Humidity (non-condensing)	Max 95%
Enclosure Material / Color	Steel, Blue (RAL 5012)
Ingress Protection	IP22
Dimensions (H x W x D)	536 x 277 x 147 mm (21.1 x 10.9 x 5.8 in)
Weight	19 kg (42 lbs)
Battery Connection	M8 bolts
AC Connection	Screw terminal (6 AWG / 13 mm²)
Certifications	UL 458, EN-IEC 60335-1/-2-29, CSA 22.2 107.1-16
EMC Standards	EN 55014-1/-2, EN-IEC 61000-3-2/3, IEC 61000-6-1/2/3

Remote Monitoring & Accessories:

VE.Bus Smart Dongle – Enables Bluetooth and temperature monitoring
VictronConnect App – Mobile and desktop app for configuration and monitoring
MK3-USB Interface – For VE.Configure software and advanced setup
Cerbo GX / Ekrano GX – Enables real-time monitoring and control
VRM Portal – Free cloud-based dashboard for full remote access and alerts

Applications: Ideal for 24V battery-based systems in mobile vehicles, marine vessels, off-grid homes, and power backup installations requiring dual 120V output and full UL 458 compliance.

Part Number: PMP242305132
Brand: Victron Energy
