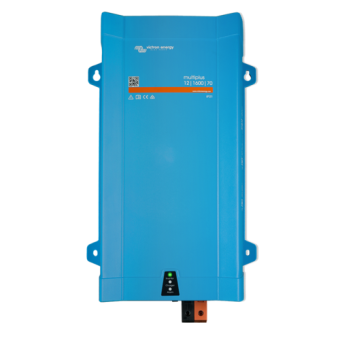

Victron Energy PMP122160000 - MultiPlus 12/1600/70-16 230V VE.Bus

Victron Energy PMP122160000 - MultiPlus 12/1600/70-16 230V VE.Bus

Key Features:

• Dual-function inverter and charger providing 1300W continuous output at 25°C, with peak power up to 2800W.
• PowerControl and PowerAssist features for managing limited generator or shore power by boosting output and protecting power sources from overload.
• VE.Bus communication port enables remote monitoring, parallel operation, and three-phase configuration.
• High efficiency of up to 93% with low idle power consumption (10W standard, 3W in search mode).
• Adaptive 4-stage charging (bulk, absorption, float, storage) for efficient battery maintenance, with temperature-compensated charging.
• Search Mode reduces power consumption by turning off the inverter when not in use, and reactivating upon detecting a load.
• Integrated programmable relay for alarms and control functions.

Specifications:

• Model: MultiPlus 12/1600/70-16
• Input Voltage Range: 9.5 - 17V DC
• Continuous Output Power at 25°C: 1300W
• Continuous Output Power at 40°C: 1100W
• Continuous Output Power at 65°C: 800W
• Peak Power: 2800W
• Output Voltage: 230V ± 2%
• Frequency: 50Hz ± 0.1% (switchable to 60Hz)
• Charger Output: 70A for house battery, 1A for starter battery
• Absorption Voltage: 14.4V DC
• Float Voltage: 13.8V DC
• Storage Voltage: 13.2V DC
• Maximum Efficiency: 93%
• Idle Consumption: 10W (standard mode), 3W (search mode)
• Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
• Dimensions: 470 x 265 x 120 mm (18.5 x 10.4 x 4.7 inches)
• Weight: 10.2 kg (22.5 lbs)
• Standards Compliance: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1, ECE R10-5

Compatibility and Application:

• Designed for off-grid, RV, and marine applications requiring both reliable inverter and charger functionality in one device.
• Supports parallel and three-phase operation with VE.Bus for complex power setups, making it suitable for multi-unit configurations.

Benefits:

• Seamlessly combines power inversion and adaptive battery charging, improving power efficiency and battery life.
• PowerAssist and PowerControl features help balance shore or generator power with battery support, preventing overload.
• Temperature-compensated charging adapts to battery conditions, reducing risk of overcharging in varied climates.
• Integrated programmable relay enables customized control for alarms, DC under-voltage, or generator start/stop signals.
• High surge capacity supports start-up of demanding loads, making it ideal for devices with high initial power requirements.
