The Victron Phoenix Inverter Smart 48/1600 (PIN482161000) delivers 1600VA (1300W) of continuous pure sine wave AC power and a peak power of 3000W, sourced from a 48V battery. Designed for advanced off-grid, mobile, and marine power systems, it features Bluetooth connectivity for wireless configuration, VE.Direct communication for system integration, and ECO mode for power savings. With a toroidal transformer and programmable relay, it ensures high surge capacity and stable voltage output for sensitive and heavy loads.
- Description
- Ask a Question
-

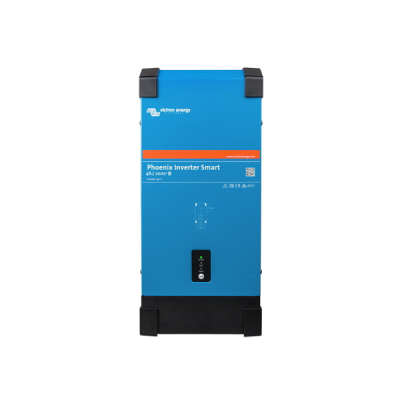

Victron PIN482161000 – Phoenix Inverter Smart 48/1600 230V
The Victron Phoenix Inverter Smart 48/1600 is a compact and intelligent inverter delivering reliable pure sine wave AC output from a 48V battery system. It offers 1300W of continuous power (1600VA) and can manage up to 3000W of peak surge power, making it suitable for powering sensitive electronics and inductive appliances. Designed for professional use, the inverter features integrated Bluetooth for wireless configuration and monitoring via the VictronConnect app, as well as a VE.Direct port for system integration with GX devices or USB monitoring.
Key Features:
- Pure Sine Wave Output: Clean, stable power for all AC devices including electronics and motors.
- Bluetooth Connectivity: Configure ECO mode, voltage alarms, cut-off levels, and more wirelessly.
- VE.Direct Port: Provides data access for USB/GX device integration and remote monitoring.
- High Surge Capacity: Up to 3000W for supporting motor startup and high inrush devices.
- Dynamic Battery Protection: Fully configurable low voltage shut-down settings based on load.
- Programmable Relay: Supports alarm or generator control automation.
- ECO Mode: Reduces energy use by shutting down at low loads and restarting periodically.
- Remote On/Off: Terminal interface for external switching or ignition control.
Technical Specifications:
Parameter Value Model Number PIN482161000 Input Voltage Range 37.2 – 68V DC Output Voltage 230V ±2% Output Frequency 50Hz or 60Hz ±0.1% Continuous Output Power at 25°C 1600VA / 1300W Output at 40°C / 65°C 1200W / 800W Peak Power 3000W Max Efficiency 94% No-load Power Consumption 11W Power Consumption in ECO Mode 2.1W Programmable Relay Yes Bluetooth Built-in VE.Direct Communication Yes Remote On/Off Yes Cooling Fan-assisted Operating Temperature -40°C to +65°C Humidity Max 95% (non-condensing) Enclosure Material Steel, RAL 5012 (blue) or RAL 9017 (black) Protection Rating IP21 Battery Connection M8 bolts AC Output Connection Screw terminals Dimensions (H × W × D) 485 × 219 × 125 mm Weight 12 kg
Standards & Certifications:
- Safety: EN 60335-1
- EMC: EN 55014-1 / EN 55014-2 / EN-IEC 61000-6-1 / -6-2 / -6-3
- Automotive Directive: ECE R10-5
Compatible Accessories:
- VictronConnect mobile app (iOS/Android)
- VE.Direct to USB Interface
- Victron GX Devices (e.g. Cerbo GX)
- BMV-712 Smart Battery Monitor
- Filax Automatic Transfer Switch
The Victron Phoenix Inverter Smart 48/1600 offers intelligent control, robust performance, and reliable power conversion for 48V systems in off-grid homes, vehicles, boats, and backup energy setups.
Documents
Victron Energy Inverter Smart 1600VA - 5000VA 12:24:48V Size: 841,5 Kb -
