SKU:
CN VIPIN245020000
€ 1.994,92
1-2 weeks delivery time
-
+
The Victron Phoenix Inverter 24/5000 (PIN245020000) is a high-capacity pure sine wave inverter delivering 5000VA (4000W) of continuous power and 10,000W peak from a 24V battery source. Designed with SinusMax hybrid high-frequency technology, it ensures reliable power conversion for even the most demanding off-grid, marine, or industrial applications. With VE.Bus support for remote configuration and monitoring, parallel and 3-phase operation, and a programmable relay, it is a robust solution for scalable energy systems.
- Description
- Ask a Question
-

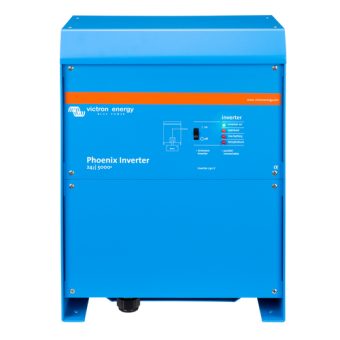

Victron PIN245020000 – Phoenix Inverter 24/5000 230V VE.Bus
The Victron Phoenix Inverter 24/5000 provides 4000W continuous output (5000VA) and 10,000W peak surge capacity from a 24V DC power source. Built for professional energy systems, it features pure sine wave output suitable for sensitive electronics and high-start appliances. The inverter uses SinusMax hybrid HF technology to combine compact size with exceptional performance and high efficiency. With VE.Bus communication, the inverter can be configured, monitored, and integrated with GX devices for full remote control.
Key Features:
- Pure Sine Wave Output: Delivers stable 230V AC for all connected devices.
- High Peak Power: Handles start-up loads from motors, compressors, and tools (up to 10,000W).
- VE.Bus Communication: Connects to GX systems or PC via MK3-USB for configuration and monitoring.
- Parallel & 3-Phase Ready: Up to 6 units can be combined for 3-phase or expanded power configurations.
- Programmable Relay: Useful for alarms or generator start/stop logic.
- Remote On/Off: Integrates with ignition or switch systems for easy activation.
Technical Specifications:
Parameter Value Model Number PIN245020000 Input Voltage Range 19 – 33 V DC Output Voltage 230 VAC ±2% Output Frequency 50 Hz ±0.1% (adjustable to 60 Hz) Continuous Output Power at 25°C 5000 VA / 4000 W Continuous Power at 40°C / 65°C 3700 W / 3000 W Peak Power 10,000 W Max Efficiency 94% No-Load Power Consumption 35 W AES Mode Consumption 30 W Search Mode Consumption 15 W Programmable Relay Yes VE.Bus Port Yes Remote On/Off Yes Cooling Fan-assisted Operating Temperature -40°C to +65°C Humidity Max 95% (non-condensing) Enclosure Material Aluminium (RAL 5012 blue) Protection Rating IP21 Battery Connection 2+2 M8 bolts AC Output Connection Screw terminals Dimensions (H × W × D) 444 × 328 × 240 mm Weight 30 kg
Protection Features:
- Output short circuit
- Overload
- High/low battery voltage
- High temperature shutdown
- Input voltage ripple protection
Compliance & Standards:
- Safety: EN 60335-1
- EMC: EN 55014-1 / EN 55014-2
Compatible Accessories:
- MK3-USB (VE.Bus to USB)
- BMV-700 Series Battery Monitors
- Color Control GX / Cerbo GX
- VE.Bus to NMEA 2000 interface
The Victron Phoenix Inverter 24/5000 VE.Bus delivers the power, control, and reliability demanded by serious off-grid and industrial users. With support for advanced system integration, high surge handling, and parallel scalability, it's built for applications that can’t compromise on performance.
Documents
Victron Energy Inverter 12:24:48V Size: 650,8 Kb -
