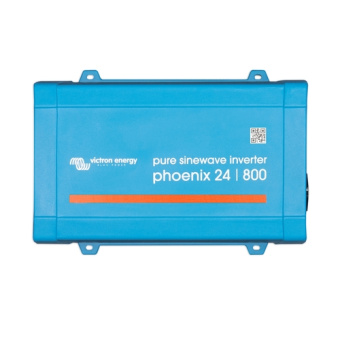

Victron Energy PIN241800400 - Phoenix Inverter 24/800 230V VE. Direct UK

Article BB-PIN241800400

€ 356,40

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron Energy PIN241800400 - Phoenix Inverter 24/800 230V VE.Direct UK is a reliable 800VA inverter designed to convert 24V DC power to a stable 230V AC output, ideal for off-grid, marine, and RV applications. This inverter includes a VE.Direct communication port for easy monitoring and configuration through USB or Bluetooth adapters. Key settings are fully customizable, including low battery voltage alarms, adjustable output voltage (210-245V), and dynamic cut-off levels, making it adaptable to various power needs. The toroidal transformer design ensures high peak power capability, allowing it to start demanding appliances with up to 1500W surge power. The ECO mode helps conserve energy by switching the inverter to standby when loads are low, reactivating as needed. Built for durability, it operates within a wide temperature range from -40°C to +65°C with fan-assisted cooling.

Description
Ask a Question

Victron Energy PIN241800400 - Phoenix Inverter 24/800 230V VE.Direct UK

Key Features:
- High-performance 800VA inverter for converting 24V DC battery power to 230V AC, ideal for UK applications
- VE.Direct communication port allows monitoring and configuration via USB or Bluetooth (adapters sold separately)
- Fully configurable with settings for low battery voltage alarms, dynamic cut-off, and adjustable output voltage (210-245V)
- Reliable toroidal transformer design for high peak power and protection against short circuits, overloads, and overheating
- ECO mode conserves battery power by switching to standby during low loads, with reactivation as needed
Specifications:
- Input Voltage Range: 18.4 - 34V DC
- Output Voltage: 230V AC, adjustable between 210-245V
- Continuous Power Output: 800VA, with peak power up to 1500W for high-startup loads
- Efficiency: Up to 90% for optimal power usage
- Zero-Load Power Consumption: 6W in standard mode, reduced in ECO mode
- Operating Temperature: -40°C to +65°C, with fan-assisted cooling and automatic derating above 40°C
- Dimensions: 105 x 216 x 305 mm (4.1 x 8.5 x 12.1 inches)
- Weight: 5.5 kg (12 lbs)
- IP21 rated for protection against dust and dripping water
Compatibility and Application:
- Suitable for off-grid, marine, and RV systems, providing reliable 230V AC output from 24V DC batteries
- Perfect for powering household appliances and sensitive electronics in mobile environments
Benefits:
- Remote On/Off functionality for easy integration into power systems
- LED indicators provide quick diagnostics and status updates
- Compatible with Victron Filax Automatic Transfer Switch, allowing seamless power transitions without interruptions
