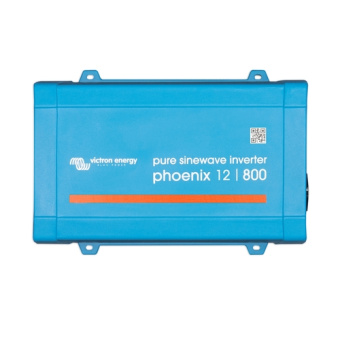

Victron Energy PIN121801400 - Phoenix Inverter 12/800 230V VE.Direct UK

Victron Energy PIN121801400 - Phoenix Inverter 12/800 230V VE.Direct UK

Key Features:

• Compact and powerful 12V 800VA inverter with VE.Direct communication for real-time monitoring
• Fully configurable via VE.Direct port, supporting connection to smartphones, tablets, and computers
• Adaptive 3-stage charging and dynamic cut-off features for efficient battery management
• High start-up power, suitable for demanding loads like power tools, LED lights, and small appliances
• ECO mode for energy-saving operation, switching to standby when load drops below preset level

Specifications:

• Continuous power: 650W at 40°C (800VA)
• Peak power: 1500W
• Output voltage/frequency: 230V AC ±3%, 50Hz or 60Hz ±0.1%
• Input voltage range: 9.2V - 17V DC
• Max efficiency: 90%
• Protection features: short circuit, overload, high and low battery voltage, temperature, and DC ripple
• Operating temperature range: -40°C to +65°C (with power derating above 40°C)
• Enclosure: IP21-rated steel chassis with plastic cover, suitable for indoor use
• Dimensions: 86 x 165 x 260 mm; Weight: 3.4 kg
• Compliant with standards: EN-IEC 60335-1, EN-IEC 62109-1, ECE R10-4

Compatibility and Application:

• Designed for 12V battery systems, ideal for marine, automotive, off-grid, and backup applications
• Supports VE.Direct to Bluetooth or USB connections for easy monitoring and configuration via VictronConnect app
• Compatible with Filax automatic transfer switch for uninterrupted power switching between multiple sources

Benefits:

• Reliable power conversion with adaptive dynamic cut-off, protecting batteries from deep discharge
• High efficiency and start-up capacity for smooth operation of heavy loads
• Low standby power consumption in ECO mode, enhancing energy efficiency in continuous use
• Built to withstand challenging conditions, making it an excellent choice for diverse environments
