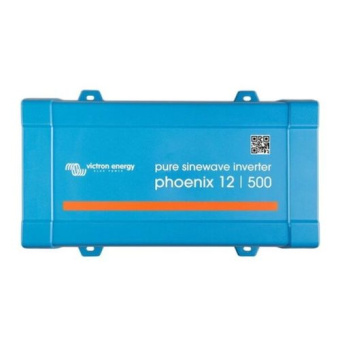

Victron Energy PIN121501400 - Phoenix Inverter 12/500 230V VE. Direct UK

Article BB-PIN121501400

€ 219,12

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron Energy PIN121501400 - Phoenix Inverter 12/500 230V VE.Direct UK is a reliable 500VA inverter designed to convert 12V DC battery power into a stable 230V AC output, ideal for UK-based household appliances in mobile and off-grid applications. With a VE.Direct communication port, this inverter allows for easy monitoring and configuration through USB or Bluetooth adapters. Key settings are fully customizable, including battery voltage alarms, dynamic cut-off levels, and adjustable output voltage between 210-245V. Built with a robust toroidal transformer, it provides proven reliability, offering protection against short circuits and overheating. The inverter's ECO mode conserves energy by switching to standby at low loads, reactivating when demand increases. With a peak power of 900W, it supports the startup of high-demand appliances.

Description
Ask a Question

Victron Energy PIN121501400 - Phoenix Inverter 12/500 230V VE.Direct UK

Key Features:
- 500VA continuous power inverter, providing 230V AC from a 12V DC battery, suitable for powering UK household appliances on the go
- VE.Direct communication port enables configuration and monitoring through USB or Bluetooth (adapters sold separately)
- Fully customizable settings, including low battery voltage alarms, dynamic cut-off, adjustable output voltage (210-245V), and frequency options (50Hz/60Hz)
- Proven reliability with toroidal transformer design, ensuring robust protection against short circuits and overheating
- ECO mode minimizes power consumption by switching to standby at low loads and reactivating as needed
Specifications:
- Input Voltage Range: 9.2 - 17V DC
- Output Voltage: 230V AC, adjustable between 210-245V
- Continuous Output Power: 500VA, with peak power of 900W to start high-demand devices
- Efficiency: Up to 90% for optimal power utilization
- Zero-Load Power Consumption: 6W in standard mode, reduced in ECO mode
- Operating Temperature: -40°C to +65°C, with automatic derating above 40°C
- Dimensions: 86 x 165 x 260 mm (3.4 x 6.5 x 10.2 inches)
- Weight: 3 kg (6.6 lbs)
Compatibility and Application:
- Ideal for RVs, marine, and off-grid systems requiring a stable 230V output from a 12V DC source
- Perfect for powering sensitive devices and household electronics in mobile environments
Benefits:
- Remote On/Off control for convenient integration with system-wide switches
- LED diagnostic indicators provide easy-to-read status updates
- Compatible with the Victron Filax Automatic Transfer Switch, enabling seamless power transfer
