SKU:
CN VIPCH024025001
€ 743,89
1-2 weeks delivery time
-
+
The Victron Energy Phoenix PCH024025001 is a compact 24V battery charger delivering 25A across two fully-rated outputs for house batteries and an additional 4A output for starter battery maintenance. Featuring a microprocessor-controlled 4-stage adaptive charging profile (Bulk, Absorption, Float, Storage), the charger dynamically adjusts to battery usage for optimal longevity and efficiency. With global AC (90–265V) and DC (90–400V) input compatibility, integrated temperature and voltage sensing, and RS-485 communication for full configurability via VEConfigure, this charger is ideal for marine, mobile, and industrial systems where dependable charging is mission-critical.
- Description
- Ask a Question
-

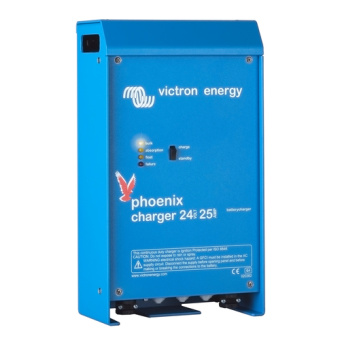

Victron Energy Phoenix Charger 24V 25A (2+1) – PCH024025001
The Phoenix 24/25 (2+1) charger from Victron Energy combines intelligent adaptive charging with robust design for demanding 24V battery systems. It provides two 25A outputs for house batteries and a 4A output for starter battery support, making it ideal for applications such as yachts, service vehicles, and off-grid systems.
Key Features:
- Adaptive 4-Stage Charging: Bulk, Absorption, Float, and Storage stages adjust based on usage patterns
- Multi-Bank Charging: 2 × 25A for house batteries + 1 × 4A starter battery output
- BatterySafe Mode: Prevents over-gassing during high-current charging scenarios
- Storage Mode: Reduces float voltage after 24h inactivity to preserve battery plates
- Temperature Sensor: Automatically adjusts voltage based on battery temperature
- Voltage Sense Input: Ensures precise voltage delivery by compensating for cable resistance
- RS-485 Interface: Enables full charger configuration via VEConfigure software (MK2-USB required)
- Cooling: Forced fan cooling maintains safe temperatures under full load
Technical Specifications:
Model PCH024025001 – Phoenix 24/25 (2+1) Battery Voltage 24 V Output Current 2 × 25 A + 1 × 4 A (starter) Absorption Voltage 28.8 V Float Voltage 27.6 V Storage Mode Voltage 26.4 V Recommended Battery Capacity 100 – 400 Ah Input Voltage (AC) 90–265 V Input Voltage (DC) 90–400 V Frequency 45–65 Hz Power Factor 1 Operating Temperature -20 to +60 °C (0 – 140 °F) Cooling Forced fan cooling Protection Features Short circuit, over-temperature, reverse polarity, overvoltage Humidity Max 95% (non-condensing) Enclosure Aluminium (blue RAL 5012) IP Rating IP21 Weight 3.8 kg (8 lbs) Dimensions (H × W × D) 350 × 200 × 108 mm (13.8 × 7.9 × 4.3 in) Battery Connections M6 studs AC Connection Screw clamp, 4 mm² (AWG 11) Certifications EN 60335-1, EN 60335-2-29; EMC: EN 55014-1/2, EN 61000-3-2/3
Applications:
- Marine shore power and onboard energy systems
- Off-grid and backup battery systems
- RV and mobile workshop battery banks
- Battery maintenance for service vehicles and fleets
Documents
Victron Energy Phoenix Charger Size: 275,2 Kb -
