The Victron Energy Phoenix PCH012030001 is a 12V, 30A adaptive battery charger featuring two full-current outputs for house batteries and one 4A output for starter batteries. With a microprocessor-controlled 4-stage charging algorithm (Bulk, Absorption, Float, Storage), it ensures optimal performance and long battery life across all chemistries. The charger supports AC input from 90–265V and DC input from 90–400V, with RS-485 computer interface for custom configuration via VEConfigure software. Equipped with temperature and voltage sensing, storage mode, and forced cooling, it’s ideal for marine, RV, and backup power systems where reliability is critical.
- Description
- Ask a Question
-

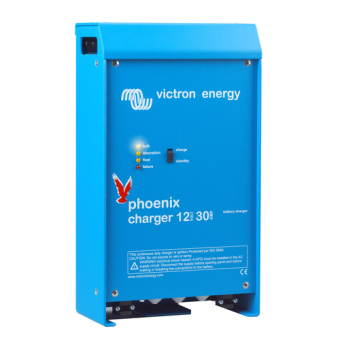

Victron Energy Phoenix Charger 12V 30A (2+1) – PCH012030001
The Victron Phoenix 12/30 (2+1) charger is designed for intelligent, adaptive charging of 12V battery systems in mobile and off-grid power setups. It features two main outputs delivering 30A for house batteries and one 4A output dedicated to maintaining a starter battery. With microprocessor-controlled adaptive charging and multiple protection mechanisms, it ensures efficient energy delivery and battery longevity under all conditions.
Key Features:
- Adaptive Charging: 4-stage (Bulk, Absorption, Float, Storage) with automatic adjustment based on usage
- Output Channels: Two full-power 30A outputs + one 4A starter battery output
- BatterySafe Mode: Limits voltage rise to prevent excessive gassing
- Storage Mode: Lowers voltage after 24h idle to reduce plate corrosion and extend battery life
- Temperature Compensation: Included sensor adjusts voltage based on battery temperature
- Voltage Sensing: Compensates for voltage drop in DC cabling
- Computer Interface: RS-485 port for remote configuration via VEConfigure (USB interface required)
- Cooling: Forced ventilation for thermal stability
Technical Specifications:
Model PCH012030001 – Phoenix 12/30 (2+1) Battery Voltage 12 V Output Current 2 × 30 A + 1 × 4 A (starter battery) Charge Voltage – Absorption 14.4 V Charge Voltage – Float 13.8 V Storage Mode 13.2 V Recommended Battery Capacity 100–400 Ah Input Voltage Range (AC) 90–265 V Input Voltage Range (DC) 90–400 V Input Frequency 45–65 Hz Power Factor 1 Operating Temperature -20 to +60 °C (0 – 140 °F) Cooling Forced air cooling Protection Short circuit, over-temp, reverse polarity, high voltage Humidity (non-condensing) Max 95% Enclosure Material Aluminium, blue RAL 5012 IP Rating IP21 Dimensions (HxWxD) 350 × 200 × 108 mm (13.8 × 7.9 × 4.3 in) Weight 3.8 kg (8 lbs) Battery Connections M6 studs AC Connections Screw clamp 4 mm² (AWG 11) Certifications EN 60335-1, EN 60335-2-29, EN 55014-1/2, UL standards
Ideal Applications:
- Yachts and marine onboard systems
- RVs and camper vans
- Remote backup systems
- Battery maintenance in low-use installations
Documents
Victron Energy Phoenix Charger Size: 275,2 Kb -
