SKU:
CN VIORI484828110
€ 136,88
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Victron Orion-Tr 48/48-6A (ORI484828110) is a high-performance isolated DC-DC converter designed for professional 48V power systems. Delivering a continuous 280W output at 6A and featuring galvanic isolation, this model supports input voltages from 32 to 70 VDC and offers adjustable output from 40 to 60 VDC. Housed in a compact 130 × 186 × 70 mm enclosure and weighing only 1.3 kg, it's ideal for mobile and industrial applications that require stable, efficient, and isolated voltage conversion.
- Description
- Ask a Question
-

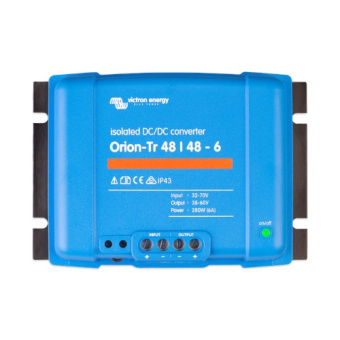

Victron Orion-Tr 48/48-6A Isolated DC-DC Converter – 280W
The Victron Orion-Tr 48/48-6A (ORI484828110) is an isolated DC-DC converter tailored for demanding 48V systems where precision, safety, and thermal stability are critical. With a wide input voltage range of 32–70 VDC and adjustable output voltage between 40–60 VDC, this model ensures reliable performance across various environments. It includes a remote on/off terminal, IP43 protection when mounted vertically, and short-circuit protection, making it a robust solution for both mobile and stationary installations.
Technical Specifications Model Orion-Tr 48/48-6A (ORI484828110) Input Voltage Range 32 – 70 VDC Output Voltage (Nominal) 48.2 VDC Adjustable Output Voltage 40 – 60 VDC Continuous Output Current 6 A Maximum Output Power 280 W at 25°C Efficiency 89% Galvanic Isolation 200 VDC between input/output/case Remote On/Off Yes IP Rating IP43 (when terminals face downward) Dimensions (H × W × D) 130 × 186 × 70 mm Weight 1.3 kg Connection Type Screw terminals (up to 16 mm² / AWG6) Operating Temperature -20°C to +55°C Protection Short circuit, over-temperature Certifications EN 60950, EN 61000, ECE R10-5
Key Features
- Isolated DC-DC conversion for 48V systems
- High efficiency (up to 89%) and compact design
- Adjustable output voltage from 40V to 60V
- Remote on/off functionality for system integration
- Robust against high temperatures and short circuits
Applications
- Industrial automation systems
- Telecom and backup power infrastructure
- Marine and mobile vehicle electrical systems
- Off-grid solar and battery installations
Documents
Victron Energy Orion-Tr DC-DC Converters Isolated Size: 273,9 Kb -
