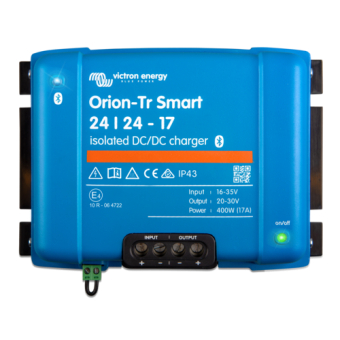

Victron Energy ORI242441110 - Orion-Tr 24/24 17A Isolated DC-DC Converter

Victron Energy ORI242441110 - Orion-Tr 24/24 17A Isolated DC-DC Converter

Key Features:

• Efficient 24V to 24V isolated DC-DC converter with 17A continuous output, delivering up to 400W for stable performance in demanding applications.
• Galvanic isolation of 200V DC between input and output, providing enhanced safety and reliability.
• Wide input voltage range of 20-35V, ensuring stable output even during fluctuations.
• IP43 protection rating (when mounted with terminals facing downward), suitable for environments exposed to dust and moisture.
• High efficiency of 89%, reducing energy loss and heat generation.
• Features remote on/off terminal for ease of control, eliminating the need for a high-current switch in the input wiring.

Specifications:

• Input Voltage Range: 20-35V DC
• Output Voltage: 24.2V DC
• Continuous Output Current: 17A
• Maximum Output Power: 400W
• Efficiency: 89%
• Standby Current: < 80mA
• Operating Temperature Range: -20°C to +55°C (derates 3% per °C above 40°C)
• Humidity: Max 95% non-condensing
• Galvanic Isolation: 200V DC between input, output, and case
• Protection Rating: IP43 (when installed with terminals facing downward)
• Connections: Screw terminals, max cable size 16 mm² (AWG6)
• Dimensions: 130 x 186 x 70 mm
• Weight: 1.6 kg
• Certifications: EN 60950 (Safety), EN 61000-6-3, EN 55014-1 (Emission), EN 61000-6-2, EN 61000-6-1, EN 55014-2 (Immunity), ECE R10-5 (Automotive Directive)

Compatibility and Application:

• Ideal for automotive, marine, and industrial applications requiring reliable 24V to 24V voltage conversion with isolation.
• Perfect for systems needing enhanced safety and stability through galvanic isolation.

Benefits:

• Ensures stable power conversion with high efficiency (89%), reducing energy loss and optimizing battery performance.
• Provides robust protection against voltage fluctuations with a wide input range, ensuring a stable 24V output in variable environments.
• Galvanic isolation of 200V DC between input and output enhances safety by preventing interference, making it ideal for sensitive equipment.
• Remote on/off functionality simplifies integration into complex systems, allowing for control without high-current switches.
• Built for durability with IP43-rated protection, perfect for applications in dusty and moist conditions.
