€ 426,36
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Orion XS 1400 is a high-performance DC-DC charger from Victron Energy, delivering up to 1400W in 12V, 24V, or mixed-voltage systems. Designed for use with intelligent alternators and dual-battery setups, it features adaptive charging, configurable currents, Bluetooth monitoring, VE.Direct, VE.Smart Networking, and full IP65 protection. Ideal for marine, RV, and off-grid applications needing precise, safe, and efficient battery charging.
- Description
- Ask a Question
-

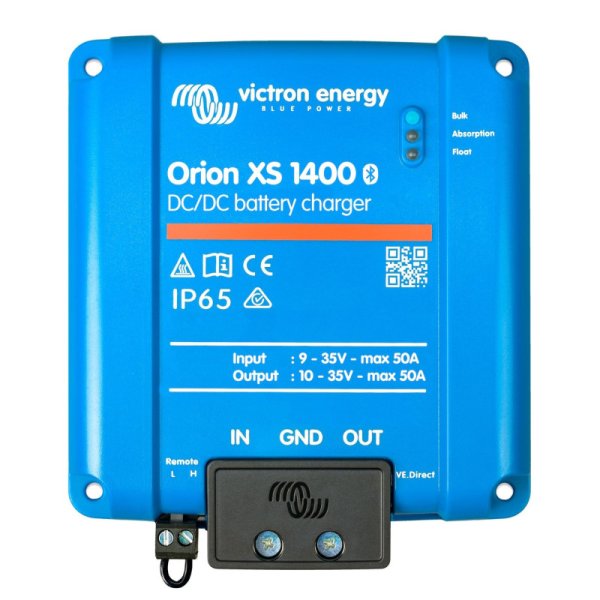

Victron Energy ORI242417040 – Orion XS 1400 DC-DC Battery Charger is engineered for advanced dual-battery applications where precise and safe charging is essential. It operates efficiently across 12V and 24V systems and can be used in mixed-voltage configurations, offering 1400W of output power and robust protection in challenging environments.
Key Features:
- Voltage Compatibility: Supports 12V, 24V, and mixed-voltage systems
- Maximum Output Power: 1400W (28V × 50A)
- Adjustable Current: 1–50A with 0.1A precision
- Engine Running Detection: Smart alternator compatibility (Euro 5 & 6)
- Efficiency: Up to 98.5%
- Adaptive 4-stage Charge Algorithm: Fully programmable with 8 presets
- Protection: Overload, short circuit, over-temp, low voltage, low temperature
- Wireless Configuration: Bluetooth Smart via VictronConnect
- Remote Monitoring: VE.Direct + VE.Smart Networking
- Enclosure: IP65 (dust-tight, protected against water jets)
Technical Specifications:
Parameter Value Input Voltage Range 9 – 35 V Output Voltage Range 10 – 35 V (adjustable) Adjustable Output Current 1 – 50 A Maximum Output Power 1400 W (at 28V) Efficiency Up to 98.5% No-load Current Consumption < 100 mA Standby Power Consumption < 1.5 mA Operating Temperature -20 °C to +60 °C (derating above 40 °C) Weight 0.52 kg Dimensions (HxWxD) 138.1 x 124.4 x 53 mm Protection Rating IP65 DC Connection Screw terminals, max 4 AWG (21.2 mm²) Communication Interfaces Bluetooth Smart, VE.Direct, VE.Smart Networking Parallel Operation Yes, unlimited units
System Integration:
- VictronConnect: Wireless monitoring and setup via app
- VE.Direct: Connection to GX devices like Cerbo GX or Ekrano GX
- VE.Smart Networking: Supports Vsense, Tsense, Isense for enhanced charging
- DVCC (Dynamic Voltage & Current Control): Compatible with recent firmware
With its compact size, IP65 rating, smart algorithms, and high power handling, the Orion XS 1400 is ideal for demanding applications in vehicles, RVs, and boats that require efficient and intelligent battery-to-battery charging solutions.
Documents
Victron Energy Orion XS DC DC Battery Charger Size: 489,5 KbVictron Orion XS 1400 Manual Size: 6,7 Mb -
