SKU:
CN VIORI241210260
€ 41,51
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+

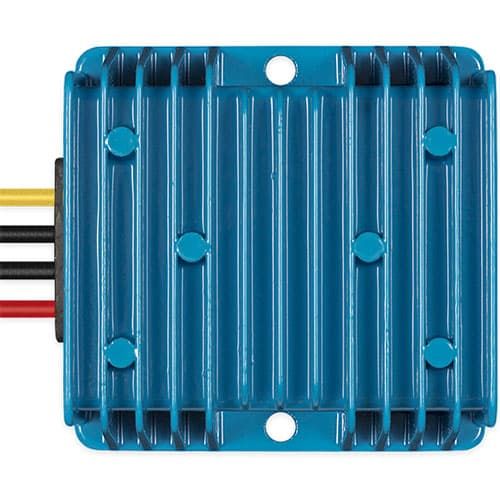

The Victron Orion IP67 24/12-10 (ORI241210260) is a durable and waterproof 120W DC-DC converter delivering a stable 12V output from a 24V input system. It provides a continuous 10A output with high efficiency (up to 93%) in demanding automotive, marine, or industrial environments. Featuring a wide 15–40V input range, the converter operates reliably despite battery voltage fluctuations. Its cast aluminium enclosure and fully encapsulated electronics ensure long-term resistance to water, vibration, and contaminants, while 1.8m integrated cables reduce installation complexity.
- Description
- Ask a Question
-
Victron Energy Orion IP67 24/12-10 (ORI241210260) Waterproof DC-DC Converter – 24V to 12V, 10A, 120W
The Orion IP67 24/12-10 is a rugged, non-isolated DC-DC converter designed to operate in harsh environments where reliability is essential. It provides a steady 12V output at up to 10A (120W), making it ideal for demanding 24V systems powering 12V equipment.
Key Features:
- Fully encapsulated and IP67 rated – waterproof, dustproof, and shockproof
- Non-isolated DC-DC converter
- Wide input voltage range: 15 – 40V DC
- Stable 12V ±3% output at up to 10A continuous
- High conversion efficiency up to 93%
- Overload protection with automatic recovery (hiccup mode)
- Short-circuit proof and reverse polarity protection (external fuse required)
- Extended temperature operation: -40°C to +70°C with derating above 40°C
- Long 1.8m input and output cables for easy and reliable installation
- Blue cast aluminium housing (RAL 5012) for excellent heat dissipation and durability
Technical Specifications:
Parameter Value Input Voltage Range 15 – 40V DC Output Voltage 12V ±3% Continuous Output Current 10A Output Power 120W Efficiency Up to 93% Ripple & Noise 75 mVpp No Load Current 20mA @ 24V Operating Temperature -40°C to +70°C (derate 3%/°C above 40°C) Protection Overload, Short Circuit, Reverse Polarity (fuse required) Enclosure Aluminium, blue (RAL 5012) Protection Rating IP67 Cable Length 1.8 meters (input and output) Cable Cross Section 1.5mm² (15 AWG) Weight 300 g Dimensions (h x w x d) 74 x 74 x 32 mm Standards EN 60950, EN 61000-6-3, EN 55014-1/-2, EN 61000-6-1/-2
Applications:
- Marine and off-road vehicle electronics
- 12V devices in 24V truck or bus systems
- Industrial and construction equipment
- Battery-powered field systems requiring robust power delivery
Built to endure moisture, heat, and physical impact, the Orion IP67 24/12-10 ensures long-term performance and minimal maintenance in critical DC applications.
Documents
Victron Energy Orion IP67 24 12 and 12 24 DC-DC Converters Size: 199,4 Kb -
