The Victron Orion-Tr Smart 12/24-10A (ORI122424120) is a Bluetooth-programmable, isolated DC-DC charger optimized for charging 24V battery banks from a 12V alternator or starter battery. Delivering up to 10A continuous current at 240W power, it supports adaptive 3-stage charging, parallel connection, and remote on/off switching. Compact (130 × 186 × 70 mm) and robust (IP43 rating), it suits vehicle, marine, and off-grid power systems requiring safe, stable, and programmable DC conversion.
- Description
- Ask a Question
-

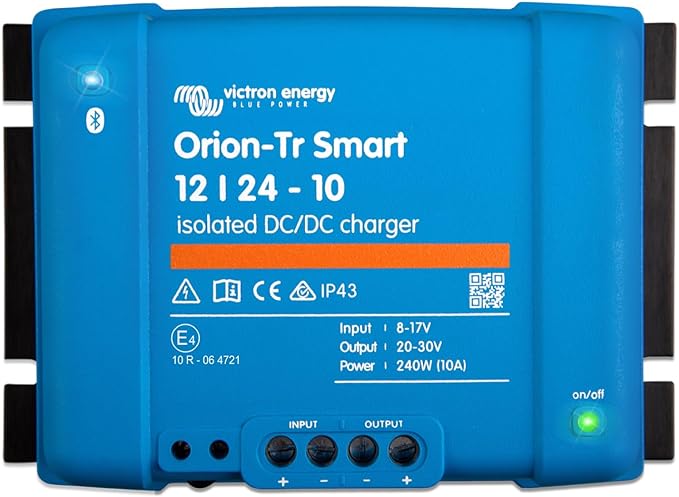

Victron Orion-Tr Smart 12/24-10A Isolated DC-DC Charger – 240W
The Victron Orion-Tr Smart 12/24-10A (ORI122424120) is a fully programmable isolated DC-DC charger with Bluetooth connectivity and an adaptive 3-stage charge algorithm. It enables safe and efficient charging of 24V batteries from a 12V power source, making it ideal for use in dual-voltage vehicle systems, boats, and mobile power applications. With full galvanic isolation, remote on/off support, and parallel capability, the Orion-Tr Smart ensures optimal performance and protection.
Technical Specifications Model Orion-Tr Smart 12/24-10A (ORI122424120) Input Voltage Range 8 – 17 VDC Nominal Output Voltage 24.2 VDC Adjustable Output Voltage 18 – 30 VDC Continuous Output Current @ 40°C 10 A Peak Output Current (10 s) 15 A Short Circuit Output Current 25 A Continuous Output Power @ 25°C 280 W Continuous Output Power @ 40°C 240 W Efficiency 88% Galvanic Isolation 200 VDC (input/output/case) Bluetooth Configuration Yes (via VictronConnect App) Charging Algorithm Adaptive 3-stage or fixed output Remote On/Off Control Yes (2-pole terminal) Standby Current < 1 mA IP Rating IP43 (electronics), IP22 (terminal area) Weight 1.3 kg Dimensions (H × W × D) 130 × 186 × 70 mm Connection Type Screw terminals (max 16 mm² / AWG6) Certifications EN 60950, EN 61000, ECE R10-5
Key Features
- Isolated DC-DC charger from 12V to 24V systems
- Adaptive 3-stage charge profile for lead-acid and lithium batteries
- Bluetooth configuration and monitoring via VictronConnect
- Remote on/off and engine run detection support
- Parallel operation to increase output current
Protection Features
- Short-circuit and over-temperature protection
- Reverse polarity and overvoltage protection
- High-temperature current derating
Applications
- RVs and camper vans with 24V auxiliary battery banks
- Marine systems requiring 24V charging from 12V alternators
- Dual-battery and dual-voltage mobile setups
- Off-grid power systems with mixed voltage architecture
Documents
Victron Energy Orion-Tr Smart DC-DC Charger Isolated Size: 353,6 Kb -
