SKU:
CN VILYN060102000
€ 241,23
1-2 weeks delivery time
-
+
The Victron Lynx Distributor (M8) is a modular 1000A-rated DC busbar with four fused outputs and real-time fuse monitoring. Designed for use in 12V, 24V, or 48V systems, it integrates into the Lynx Distribution System and connects to a Lynx Smart BMS or Lynx Shunt VE.Can via RJ10. The M8 version includes M8 connection terminals, fits MEGA fuses (not included), and provides LED indication for each fuse. Housed in a 290 × 170 × 80 mm ABS enclosure, it offers safe and organized distribution for DC loads and batteries.
- Description
- Ask a Question
-

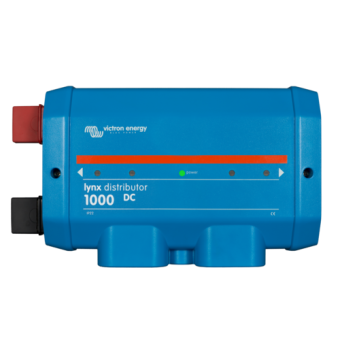

Victron Energy Lynx Distributor (M8) – 1000A Fused DC Busbar with Fuse Monitoring
The Lynx Distributor (M8) from Victron Energy is a robust and intelligent DC distribution module, designed for modular power systems requiring safe, fuse-protected distribution. It features four MEGA-fuse protected outputs, each monitored for fuse status and integrated into the Victron ecosystem via RJ10 communication with a Lynx Smart BMS or Lynx Shunt VE.Can.
Main Features
- 1000A continuous current rating
- 4 fuse-protected positive outputs (MEGA fuses, not included)
- Real-time LED fuse status indicators
- RJ10 interface for connection to Lynx Smart BMS or Lynx Shunt VE.Can
- Compatible with 12V / 24V / 48V battery systems
- Includes ground and 4 negative terminals
- Modular integration with Lynx Power In, Shunt VE.Can, and Smart BMS
Technical Specifications
Electrical Voltage range 9 – 60 VDC Supported voltages 12V / 24V / 48V Continuous current rating 1000A Fuse compatibility MEGA fuses (M8), up to 4 circuits Power source RJ10 (from Lynx Smart BMS or Lynx Shunt VE.Can) Power consumption Max. 100 mA (all LEDs on) Fuse monitoring LED indication + data via RJ10 to Smart BMS Connections Busbar terminal type M8 Fuse terminal type M8 Communication RJ10 (40cm cable included) Negative terminals 4× M8, plus ground terminal Mechanical Material ABS enclosure, tinned copper busbars Dimensions (H × W × D) 290 × 170 × 80 mm Weight 2.2 kg Busbar cross-section 8 × 30 mm Environmental Operating temperature -40°C to +60°C Storage temperature -40°C to +60°C Humidity Max. 95% (non-condensing) IP rating IP22
Usage Notes
- Requires Lynx Smart BMS or Shunt VE.Can for power and fuse monitoring
- Place dummy fuses in unused slots to prevent LED alarms
- Supports up to 4 units in a system, addressable via DIP switches
- Fuse status available via VictronConnect App, GX device, and VRM
The Lynx Distributor (M8) ensures efficient, organized, and safe DC power distribution in Victron-based systems. With modular expandability and intelligent fuse diagnostics, it is ideal for professional installations across marine, mobile, and off-grid energy sectors.
Documents
Victron Energy Lynx Distributor Size: 3,6 MbVictron Lynx Distributor Manual Size: 3,6 Mb -
