The Victron Lynx Shunt VE.Can (M10) is a 1000A-rated DC busbar with an integrated battery monitor and main fuse holder, designed for use with Victron GX devices. Compatible with CNN, ANL, or Mega fuses (not included), this model also features a dummy fuse busbar to relocate the fuse externally. It supports 12V, 24V, and 48V systems, communicates via VE.Can (RJ45), and fits inside a robust ABS enclosure (190 × 180 × 80 mm) with IP22 protection. Ideal for modular DC installations using M10 terminals and Lynx infrastructure.
- Description
- Ask a Question
-

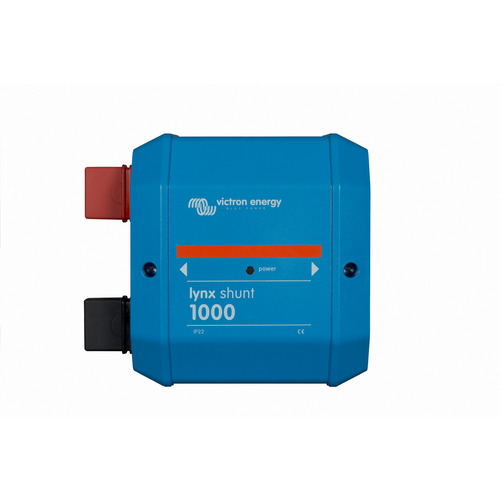

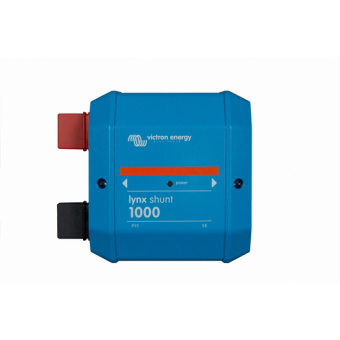

Victron Energy Lynx Shunt VE.Can (M10) – 1000A Busbar with Integrated Battery Monitor & VE.Can Interface
The Lynx Shunt VE.Can (M10) from Victron Energy is a modular DC busbar with integrated battery monitoring, designed for high-current installations requiring precision system diagnostics and VE.Can communication. With support for CNN, ANL, or Mega fuses and included dummy busbar, it is ideal for flexible system integration in off-grid, marine, and mobile power systems.
Main Features
- 1000A continuous current rating
- Supports CNN, ANL, and Mega fuses (not included)
- Fuse dummy busbar included – allows external fuse placement
- Integrated battery monitor with real-time voltage, current, and SOC
- VE.Can interface for communication with GX devices (Cerbo GX, Ekrano GX)
- Dual RJ45 ports with terminators included
- Temperature sensor and alarm relay terminals included
- Compatible with Lynx Power In, Distributor, and Smart BMS modules
Technical Specifications
Electrical Supply voltage range 9 – 70 VDC Supported system voltages 12V / 24V / 48V Current rating 1000A continuous Power consumption 60 mA @ 12V, 33 mA @ 24V, 20 mA @ 48V Potential-free alarm relay 3A @ 30 VDC / 250 VAC Connections Busbar type M10 Supported fuses CNN, ANL, Mega (fuse not included) VE.Can ports 2× RJ45 (terminators included) Distributor power input RJ10 (cable included with Distributor) Temperature sensor Screw terminal (sensor included) Relay contact Screw terminal Mechanical Enclosure material ABS plastic Dimensions (H × W × D) 190 × 180 × 80 mm Weight 1.4 kg Busbar material Tinned copper Busbar dimensions 8 × 30 mm Environmental Operating temperature -40°C to +60°C Storage temperature -40°C to +60°C Humidity tolerance Max. 95% (non-condensing) Ingress protection IP22
Installation Notes
- Ideal for high-capacity battery banks and DC loads
- Fully integrates with other M10-based Lynx modules
- Use with GX device for advanced monitoring via VRM portal
Built for demanding applications, the Lynx Shunt VE.Can (M10) delivers robust current handling, flexible fuse management, and advanced diagnostics. It’s the preferred choice for installers integrating Victron's smart DC energy systems with full monitoring and control.
Documents
Victron Energy Lynx Shunt VE.Can Size: 485,8 Kb -
