SKU:
CN VILYN040102100
€ 425,24
1-2 weeks delivery time
-
+

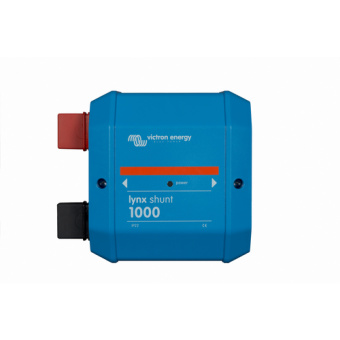

The Victron Lynx Shunt VE.Can (M8) is a 1000A-rated modular busbar that integrates a precision battery monitor and a slot for a CNN main system fuse (not included). Designed for use with Victron GX devices via VE.Can, it enables real-time voltage, current, and state-of-charge tracking in 12V, 24V, or 48V systems. The unit features M8 terminals, includes a temperature sensor, dual RJ45 ports with terminators, and is housed in a 190 × 180 × 80 mm ABS enclosure with IP22 protection.
- Description
- Ask a Question
-
Victron Energy Lynx Shunt VE.Can (M8) – 1000A DC Busbar with Battery Monitor & Main Fuse Slot
The Lynx Shunt VE.Can (M8) from Victron Energy is a modular DC busbar with integrated battery monitoring and main system fuse holder. It connects directly into the Lynx Distribution System and enables precise real-time data monitoring via VE.Can to any compatible GX device, such as the Cerbo GX. Designed for CNN-type fuses and 1000A continuous current loads, it’s ideal for marine, off-grid, and mobile power installations.
Main Features
- 1000A continuous current rating
- Integrated battery monitor (voltage, current, SOC)
- Designed for CNN fuse (not included)
- VE.Can communication interface (RJ45)
- Includes dual RJ45 terminators and temperature sensor
- Compatible with GX devices and VRM portal
- Compact and modular – integrates with Lynx Power In, Distributor, and Smart BMS
Technical Specifications
Electrical Supply voltage range 9 – 70 VDC System voltage supported 12V / 24V / 48V Current rating 1000A continuous Power consumption 60 mA @ 12V, 33 mA @ 24V, 20 mA @ 48V Alarm contact 3A @ 30 VDC / 250 VAC (potential free) Connections Busbar type M8 Fuse type CNN (not included) VE.Can 2× RJ45 (terminators included) Power supply to Lynx Distributor RJ10 Temperature sensor Screw terminal (sensor included) Alarm relay Screw terminal Physical Enclosure material ABS Dimensions (H × W × D) 190 × 180 × 80 mm Weight 1.4 kg Busbar material Tinned copper Busbar dimensions 8 × 30 mm Environmental Operating temperature -40°C to +60°C Storage temperature -40°C to +60°C Humidity Max. 95% (non-condensing) Protection class IP22
Integration Notes
- Install between battery bank and main system load
- CNN fuse required (must match system size)
- Fully integrates with Lynx Distributor, Power In, and Smart BMS modules
- Use with GX device for full VictronConnect and VRM compatibility
The Lynx Shunt VE.Can (M8) enables safe, scalable, and intelligent power monitoring in modular DC systems. Its seamless integration and precise battery management make it an essential component in the Victron Lynx distribution platform.
Documents
Victron Lynx Shunt Manual Size: 5,5 Mb -
