SKU:
CN VILYN034170310
€ 1.495,63
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+

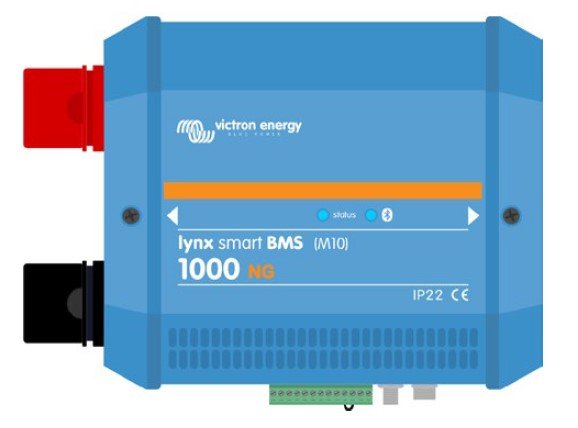

The Victron Lynx Smart BMS 1000 NG (M10) is a high-current next-generation battery management system engineered for Victron Lithium NG batteries. It supports up to 1000A continuous load and integrates advanced features including VE.Can, Bluetooth, GX and VRM connectivity, as well as real-time fuse and cell diagnostics. The system supports up to 50 Lithium NG batteries at 12/24V or 25 batteries at 48V, offering full compatibility with all M10 Lynx modules. Enclosed in a rugged ABS housing (230 × 180 × 100 mm), this BMS delivers top-tier performance and monitoring for critical energy systems.
- Description
- Ask a Question
-
Victron Energy Lynx Smart BMS 1000 NG (M10) – Next-Gen 1000A BMS for Lithium NG Systems
The Lynx Smart BMS 1000 NG (M10) from Victron Energy is the most powerful battery management solution in the Lynx Smart NG series. Designed specifically for Victron Lithium NG batteries, this unit combines a 1000A-rated safety contactor with intelligent pre-charge circuitry, full fuse and cell monitoring, and multiple communication interfaces for seamless integration in advanced power systems.
Main Features
- 1000A continuous contactor (1200A peak for 5 minutes)
- Compatible with Victron Lithium NG batteries: 12.8V, 25.6V, 51.2V
- Supports up to 50 batteries (12/24V) or 25 batteries (48V)
- Bluetooth monitoring via VictronConnect app
- VE.Can interface for GX devices (Cerbo GX, Ekrano GX)
- Integrated battery monitor with real-time SOC, voltage, current, and Instant Readout
- Programmable alarm/alternator relay
- Fuse monitoring for up to 4 Lynx Distributors (via RJ10)
- Pre-charge circuit eliminates inrush risk without external hardware
- Parallel redundancy: up to 5 BMS units can work in parallel
Technical Specifications
Electrical Battery voltage range 9 – 60 VDC Maximum input voltage 75 VDC Supported system voltages 12V / 24V / 48V Contactor continuous rating 1000A Contactor peak rating 1200A for 5 minutes Minimum load resistance for pre-charging 10Ω (12V) / 20Ω (24V / 48V) AUX output 1.1A @ system voltage (resettable fuse) Allow-to-charge/discharge ports 0.5A @ 60VDC (resettable fuse) Alarm relay SPDT, 2A @ 60VDC Power Consumption OFF mode 0.3 mA Standby mode ~0.6 W (50 mA @ 12V) ON mode ~4.2 W (350 mA @ 12V) Connections Busbar terminals M10 (Torque: 33 Nm) VE.Can RJ45 I/O Removable screw-terminal block Battery BTV interface 3-pin circular connectors (M8 thread) Fuse monitoring Up to 4 Lynx Distributors via RJ10 Mechanical Enclosure material ABS Dimensions (H × W × D) 230 × 180 × 100 mm Weight 2.7 kg Busbar material Tinned copper (8 × 30 mm) Environmental Operating temperature -40°C to +60°C Storage temperature -40°C to +60°C Humidity tolerance Max. 95% (non-condensing) Ingress protection IP22 Certifications Safety EN-IEC 63000:2018 EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012 QMS NEN-EN-ISO 9001:2015
System Applications
- Large-scale lithium battery banks using Victron NG batteries
- Marine DC systems with NMEA 2000 integration
- Redundant energy storage in off-grid and backup power solutions
With its superior current capacity, advanced diagnostics, and modular scalability, the Lynx Smart BMS 1000 NG (M10) is the most advanced BMS platform in Victron’s lineup — built for the highest performance and reliability in energy-critical environments.
Documents
Victron Energy Lynx Smart BMS NG Size: 605,4 Kb -
