SKU:
CN VILYN034160310
€ 1.086,10
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+

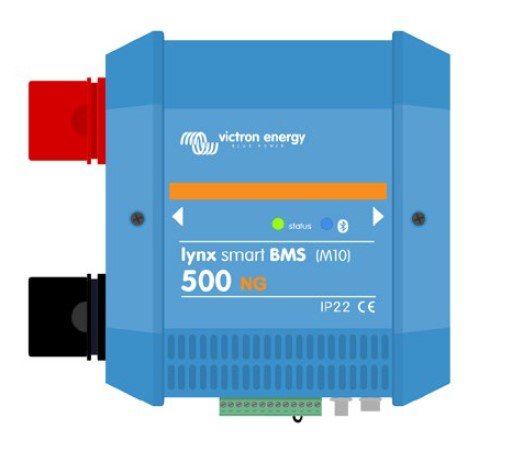

The Victron Lynx Smart BMS 500 NG (M10) is a next-generation battery management system for Victron Lithium NG batteries. Rated for 500A continuous current, it integrates a powerful contactor, intelligent pre-charge circuit, and real-time battery monitoring via Bluetooth and VE.Can. Compatible with 12V, 24V, and 48V systems, it supports up to 50 batteries per bank (12/24V) or 25 (48V), with full Lynx ecosystem integration via M10 terminals. The unit includes relay control, NMEA 2000 readiness, and GX/VRM connectivity in a 190 × 180 × 80 mm ABS enclosure.
- Description
- Ask a Question
-
Victron Energy Lynx Smart BMS 500 NG (M10) – Next-Gen Battery Management System for Lithium NG
The Lynx Smart BMS 500 NG (M10) is Victron Energy’s latest high-performance Battery Management System designed exclusively for the new Lithium NG (LiFePO₄) battery series. Supporting up to 50 batteries and integrating advanced features such as a 500A-rated contactor, intelligent pre-charge circuitry, Bluetooth and VE.Can communication, and full GX/VRM platform support, it is the most complete and scalable BMS solution for mission-critical energy systems.
Main Features
- 500A continuous contactor with 600A peak (5 min)
- Designed for Victron Lithium NG batteries (12.8V, 25.6V, 51.2V)
- Supports up to 50 batteries (12V/24V) or 25 batteries (48V)
- Bluetooth connectivity for VictronConnect App
- VE.Can interface for GX devices (e.g. Cerbo GX, Ekrano GX)
- Built-in battery monitor with Instant Readout diagnostics
- Programmable alarm/alternator relay (SPDT)
- Pre-charge circuit for inrush protection (no external components needed)
- Fuse monitoring for up to 4 Lynx Distributor modules
- Parallel redundancy (up to 5 BMS NG units)
Technical Specifications
Electrical Battery voltage range 9 – 60 VDC Maximum input voltage 75 VDC Supported voltages 12V / 24V / 48V Main contactor rating 500A continuous / 600A peak (5 min) Pre-charge resistance 10Ω (12V), 20Ω (24/48V) AUX output 1.1A continuous (resettable fuse) Allow-to-charge/discharge 0.5A @ 60VDC (resettable fuse) Alarm relay SPDT, 2A @ 60VDC Power Consumption OFF mode 0.3 mA Standby mode ~0.6 W (50 mA @ 12V) ON mode ~2.6 W (217 mA @ 12V) Connections Busbar terminals M10 (Torque: 33 Nm) VE.Can RJ45 I/O interface Removable screw-terminal block Battery BTV cables 3-pin circular (M8 thread) Fuse monitoring Up to 4 Lynx Distributors via RJ10 Physical Enclosure material ABS plastic Dimensions (H × W × D) 190 × 180 × 80 mm Weight 1.9 kg Busbar material Tinned copper, 8 × 30 mm Environmental Operating temperature -40°C to +60°C Storage temperature -40°C to +60°C Humidity Max. 95% (non-condensing) Protection rating IP22 Certifications Safety EN-IEC 63000:2018 EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012 QMS NEN-EN-ISO 9001:2015
Integration Highlights
- Full support for DVCC and ATC/ATD control logic
- Marine-ready: NMEA 2000 via VE.Can (micro-C adapter required)
- Plug-and-play with Lynx Distributor M10 and Lithium NG battery series
- Parallel BMS setup allows scalable and redundant installations
Built for the future of energy storage, the Victron Lynx Smart BMS 500 NG (M10) provides complete control, safety, and expandability in high-capacity Lithium NG battery systems. Ideal for demanding marine, mobile, and industrial installations.
Documents
Victron Energy Lynx Smart BMS NG Size: 605,4 Kb -
