The Victron Lynx Smart BMS 500 (M10) is a 500A battery management system specifically designed for Victron Lithium Smart (LiFePO₄) batteries. With M10 busbar terminals, it is ideal for high-current applications and compatible with M10-based Lynx modules. It integrates a 500A contactor, pre-charge circuit, programmable alarm relay, battery monitor (shunt), Bluetooth and VE.Can communication. Housed in a durable ABS case (190 × 180 × 80 mm), it supports up to 20 lithium batteries in 12V, 24V, or 48V configurations and can be monitored via VictronConnect or GX devices.
- Description
- Ask a Question
-

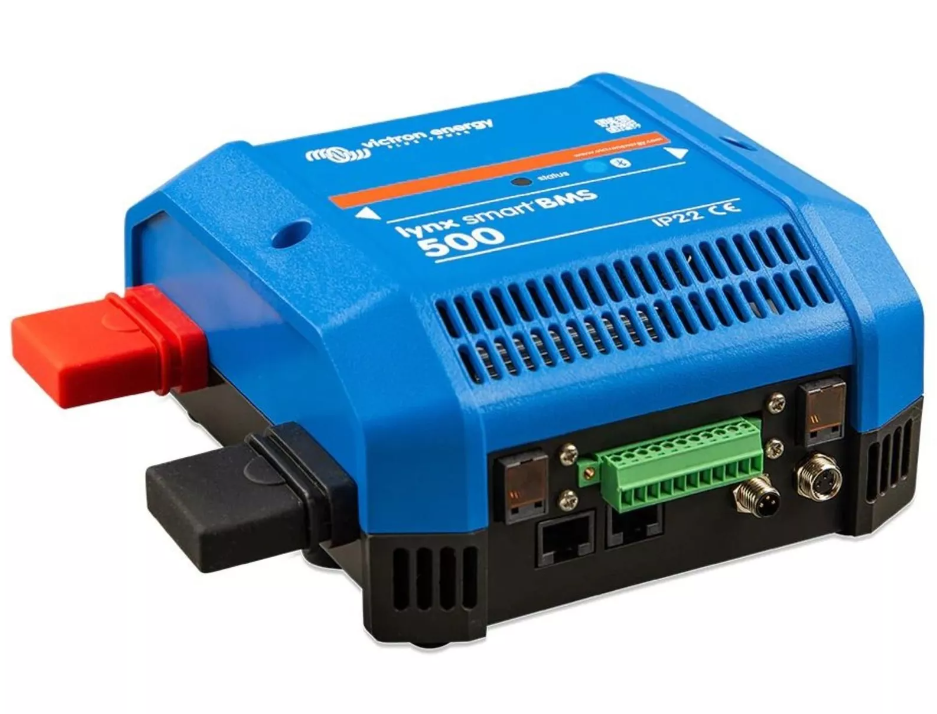

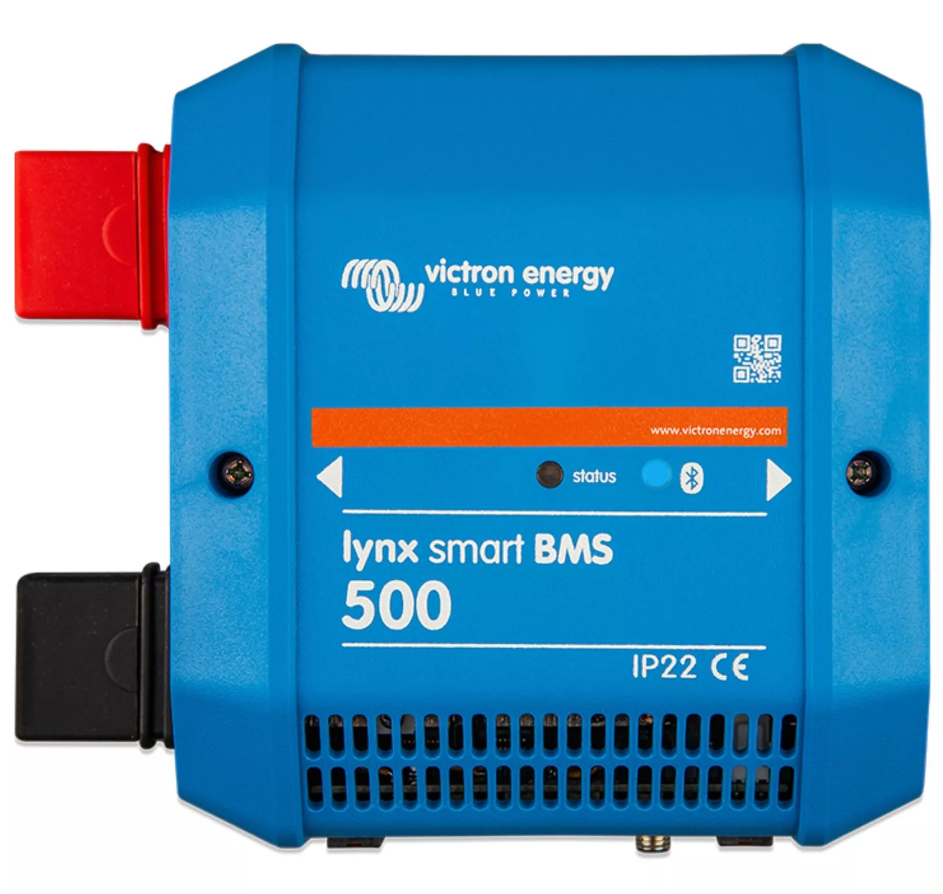

Victron Energy Lynx Smart BMS 500 (M10) – Battery Management System for Lithium Smart, 500A
The Lynx Smart BMS 500 (M10) is a robust, modular battery management system designed to manage, protect, and monitor Victron Lithium Smart (LiFePO₄) batteries. It features a 500A-rated internal contactor, Bluetooth & VE.Can communication, a built-in battery monitor, and full compatibility with the Victron GX ecosystem and Lynx modular busbar system.
Main Features
- Continuous current rating: 500A
- M10 busbar connections for higher current capacity
- Supports 12V, 24V, and 48V battery systems
- Compatible with up to 20 Victron Lithium Smart batteries
- Built-in safety contactor and pre-charge circuit
- Bluetooth-enabled monitoring via VictronConnect
- VE.Can interface for connection to GX devices
- Programmable alarm/alternator relay
- Fuse monitoring for up to 4 Lynx Distributor modules
- Parallel redundancy support with up to 5 BMS units
Technical Specifications
Electrical Battery voltage range 9 – 60 VDC Max input voltage 75 VDC Supported system voltages 12V / 24V / 48V Main contactor (continuous) 500A Main contactor (peak 5 min) 600A Pre-charge resistance 10Ω (12V), 20Ω (24/48V) AUX output 1.1A @ system voltage (resettable fuse) Allow-to-charge / discharge ports 0.5A @ 60VDC Alarm relay (SPDT) 2A @ 60VDC Power Consumption OFF mode 0.3 mA Standby mode Approx. 0.6 W (50 mA @ 12V) ON mode Approx. 2.6 W (217 mA @ 12V) Connections Busbar terminals M10 (33 Nm torque) VE.Can RJ45 I/O Removable screw-terminal block Battery BTV cables 3-pin circular connectors Fuse monitoring (Lynx Distributor) Up to 4 via RJ10 Physical Enclosure material ABS Dimensions (H × W × D) 190 × 180 × 80 mm Weight 1.9 kg Busbar material Tinned copper, 8 × 30 mm Environmental Operating temperature -40°C to +60°C Storage temperature -40°C to +60°C Humidity Max. 95% (non-condensing) Ingress protection IP22 Certifications Safety EN-IEC 63000:2018 EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012 QMS NEN-EN-ISO 9001:2015
Integration Notes
- Fully integrates with Victron GX devices (e.g., Cerbo GX)
- Ideal for high-current systems using M10-based Lynx modules
- Supports DVCC, Instant Readout, and NMEA 2000 via adapter
- Works with multiple fused Lynx Distributors in parallel
The Lynx Smart BMS 500 (M10) is the most complete and scalable lithium battery management solution in Victron’s M10 ecosystem, combining robust power handling with intelligent monitoring and remote control features for professional-grade energy systems.
Documents
Victron Energy Lynx Smart BMS Size: 564,2 Kb -
