SKU:
CN VILYN020102000
€ 168,30
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Victron Lynx Power In (M8) is a 1000A-rated modular DC busbar with 9–60V operating range, designed for safely connecting up to four batteries, loads, or chargers in high-current systems. As part of the Lynx modular distribution system, it features positive and negative copper busbars with M8 terminals, integrated ground connection, and a fully enclosed ABS housing. The M8 version supports secure bolted connections and can be extended with other Lynx modules for advanced power distribution, battery monitoring, or lithium BMS integration.
- Description
- Ask a Question
-

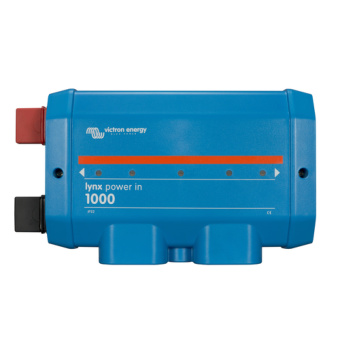

Victron Lynx Power In (M8) DC Busbar Module – 1000A
The Victron Lynx Power In (M8) is a high-current DC busbar module designed to centralize power distribution in 12V, 24V, or 48V systems. It provides four positive and four negative terminals, rated up to 1000A, and serves as a clean and safe connection point for batteries, loads, or chargers. Ideal for integration with other Victron Lynx modules, it enables scalable, modular power system architecture in marine, off-grid, or mobile applications.
- 1000A continuous current rating for high-power DC systems
- Voltage range: 9–60V DC
- Four M8 positive and four M8 negative connection points
- Built-in ground connection terminal
- Modular system: stackable with Lynx Distributor, Shunt VE.Can, or Smart BMS
- ABS housing with clear cover and IP22 protection
- Supports neat cabling and safe connections with removable cable separators
Specification Value Model LYN020102000 Voltage Range 9 – 60 VDC Continuous Current Rating 1000 A Busbar Connection Size M8 (fuse/cable terminals) Number of Positive Terminals 4 × M8 Number of Negative Terminals 4 × M8 Ground Connection Yes Enclosure Material ABS (with clear cover) Protection Class IP22 Dimensions (H × W × D) 290 × 170 × 80 mm Weight 2.1 kg Busbar Material Tinned copper (8 × 30 mm) Operating Temperature -40 °C to +60 °C Humidity Max. 95% (non-condensing) Mounting Wall/surface, interconnectable with other Lynx units Documents
Victron Lynx Power In Manual Size: 2,2 Mb -
