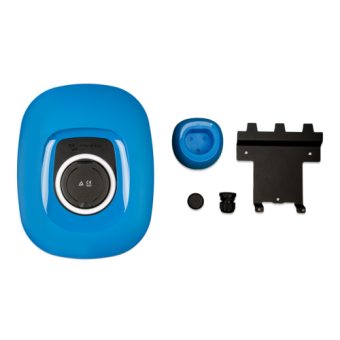

Victron Energy EVC200300200 - EV Charging Station NS Blue

Victron Energy EVC200300200 - EV Charging Station NS Blue

Key Features:

• High-power EV charger with both three-phase (up to 22 kW) and single-phase (up to 7.3 kW) capabilities for flexible charging
• Adjustable charging current between 6 to 32 A, supporting optimized power usage across various installations
• Integrated WiFi (802.11 b/g/n) with Access Point and Station modes for easy setup, monitoring, and control
• Bluetooth-enabled for direct control and monitoring via the VictronConnect app
• Programmable RGB Light Ring with 55 customizable light effects indicating different device states, such as charging, charged, or disconnected
• Compatible with Modbus TCP for GX device integration, allowing remote management and monitoring through Victron’s VRM Portal
• Supports Manual, Automatic (solar-optimized), and Scheduled Modes for charging at optimal times

Specifications:

• Input Voltage Range: 170 – 265 VAC
• Rated Charge Current: 32 A per phase
• Nominal Power: 22 kW (three-phase), 7.3 kW (single-phase)
• Current Output Range: Configurable from 6 to 32 A
• Connector Type: IEC 62196 Type 2
• Self-Consumption: 15 mA @ 230 V, ensuring energy efficiency during standby
• WiFi Standards: 802.11 b/g/n, 2.4 GHz only
• Configurable Charging Rates: Min. 6 A to max. 32 A (adjustable via VictronConnect and web interface)
• Means of Disconnection: Requires external 40 A circuit breaker
• Cost Configuration: Adjustable cost per kWh (default setting: €0.13 per kWh)
• Control Type: Web page, GX device over Modbus TCP, VictronConnect via Bluetooth
• Operating Temperature: -25°C to +50°C with no ventilation required
• Storage Temperature: -40°C to +80°C
• Humidity: Up to 95%, non-condensing
• Enclosure Color Options: Light blue (RAL 5012), traffic black (RAL 9017), and traffic white (RAL 9016)
• Enclosure Rating: IP44 for moderate protection against dust and water ingress
• Dimensions: 372 x 292 x 122 mm
• Weight: 3 kg
• Safety and Compliance Standards: IEC 61851-1, IEC 61851-22; includes relay contact welding detection, ground detection, and shorted CP detection

Compatibility and Application:

• Suitable for residential, commercial, and public EV charging, offering single and three-phase support for flexible installations
• Ideal for solar-powered systems with Automatic Mode to optimize charging based on solar generation
• Seamless integration with Victron GX devices and VRM Portal for remote monitoring and control

Benefits:

• Provides high-capacity and efficient EV charging with adjustable settings for energy savings and load management
• Intuitive control through VictronConnect and web interfaces, enabling easy access to real-time data and settings
• Multiple charging modes allow cost-effective charging at off-peak times, boosting energy efficiency
• Durable IP44-rated enclosure designed for diverse environments, ensuring reliable, long-term performance
• Complete integration with GX devices and VRM Portal offers advanced monitoring, reporting, and remote configuration capabilities
