SKU:
CN VIDMC000200010R
€ 140,25
1-2 weeks delivery time
-
+
The Victron Energy DMC000200010R is a remote panel for MultiPlus and Quattro inverter/chargers, allowing convenient control and AC current adjustment up to 200A. Designed with a right-angle RJ45 port for tight installations, it supports systems with single, dual, or three-phase configurations. Featuring an AC input selector, LED indicators, and auto-dimming display, it's ideal for marine, off-grid, and mobile power setups.
- Description
- Ask a Question
-

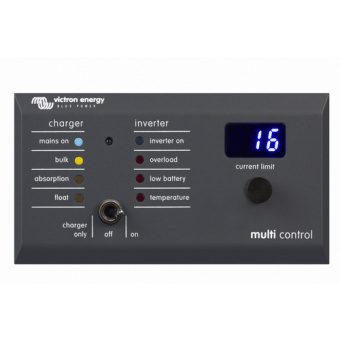

Victron Energy DMC000200010R – Digital Multi Control 200/200A GX (90° RJ45)
Overview:
The Victron Energy Digital Multi Control 200/200A GX is an advanced remote control panel for Victron inverter/charger systems. It enables users to monitor and adjust the AC input current (up to 200A) and switch the system on/off or to charger-only mode. This GX variant is designed with a 90° RJ45 connector for easier installation in shallow or limited-space control panels.
Key Features:
- Remote panel for MultiPlus, Quattro, and other compatible Victron inverter/chargers.
- Supports stand-alone, parallel, 2-phase, and 3-phase systems.
- AC input current limit adjustment via rotary knob – up to 200A.
- Integrated 7-segment display shows current setting and AC input source.
- Eight status LEDs reflect inverter/charger operating modes and errors.
- Built-in light sensor for automatic LED brightness adjustment.
- Supports generator integration and current limit override via external switch.
- No additional configuration needed for most VE.Bus systems – plug and play with RJ45 UTP cable.
Technical Specifications:
Model DMC000200010R Max AC Input Setting 200A Display 7-segment LED with rotary knob for current setting LED Indicators 8 status LEDs (inverter, charger, temperature, low battery, etc.) Brightness Auto-dimming via integrated light sensor Connection 90° angled RJ45 for VE.Bus communication Compatible Systems MultiPlus, Quattro, EasySolar, pre-VE.Bus (with scaling) Mounting Flush or panel mount (optional wall enclosure) Dimensions 120 x 65 x 40 mm
Applications:
- Marine electrical systems
- Off-grid solar or backup power installations
- Mobile energy systems in RVs and vehicles
- Industrial power control panels with remote access needs
What's Included:
- Victron Digital Multi Control 200/200A GX panel
- Four mounting screws
Benefits:
- Offers quick and precise control of AC current input limits for multiple power sources.
- Helps prevent overloads when switching between grid and generator.
- Ideal for installations requiring centralized monitoring and control of inverter/charger systems.
Documents
Victron Energy Digital Multi Control 200:200A GX Size: 1,5 Mb -
