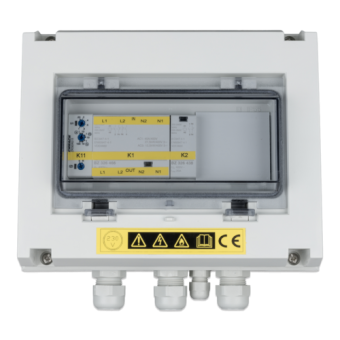

Victron Energy COS230502100 - VE Transfer Switch 5KVA 1ph 200/250V

Victron Energy COS230502100 - VE Transfer Switch 5KVA 1ph 200/250V

Key Features:

• Automatically switches between two power sources, such as a generator, shore power, or inverter, to ensure continuous power availability.
• Nominal voltage range of 200-250V AC, supporting single-phase systems with reliable performance.
• Fast transfer time with contacts closing within 10-20 milliseconds, minimizing interruptions to connected loads.
• Adjustable delay for input 1 (approximately 10 seconds) to ensure stable operation before switching.
• High-grade IP54-rated enclosure, providing protection against dust and limited water exposure, suitable for various environments.
• Equipped with auxiliary contacts compatible with Digital Multi Control (DMC) panel for enhanced system integration.

Specifications:

• Nominal Power: 5 kVA
• Input Voltage Range: 200 - 250V AC, 50-60 Hz
• Nominal Current for Input and Output: 20A
• Power Consumption: 6 VA on Input 1, 0 VA on Input 2
• Transfer Time (Closing Contacts): 10 - 20 ms
• Transfer Time (Opening Contacts): 5 - 20 ms
• Operating Temperature Range: -5°C to +60°C
• Humidity: Max 95%, non-condensing
• Protection Category: IP54, suitable for dust and limited water exposure
• Dimensions: 175 x 215 x 120 mm
• Weight: Standard weight for compact installation
• Auxiliary Contacts: 200 - 240V AC, 20A, compatible with DMC for current limit control

Compatibility and Application:

• Ideal for managing power in off-grid, marine, and industrial applications where stable transitions between power sources are essential.
• Compatible with Victron Energy inverters and can be integrated with DMC panels for advanced control.

Benefits:

• Provides uninterrupted power supply to essential systems by seamlessly switching between power sources, making it ideal for environments with fluctuating power availability.
• Its compact, IP54-rated enclosure allows installation in a wide range of environments, protecting internal components from dust and moisture.
• Fast transfer times (10-20 ms) ensure minimal downtime during switching, safeguarding sensitive electronics and preventing operational disruptions.
• Customizable delay for input 1 ensures smooth and stable switching, reducing the risk of overloading or damaging equipment.
• Auxiliary contact integration with the Digital Multi Control (DMC) panel allows for precise current limit control, enhancing system flexibility and user control.
• Optimized for Victron Energy inverters and compatible with advanced monitoring tools, allowing easy integration into larger energy systems and offering options for remote control and management.
