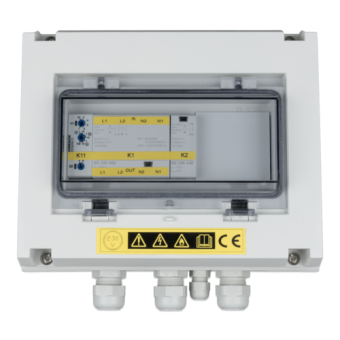

Victron VE Transfer Switch 10kVA/230V - COS230103100

SKU: CN VICOS230103100

€ 458,90

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron VE Transfer Switch 10kVA (COS230103100) is a robust and high-capacity AC switch designed for automatic load transfer between two 230V power sources, such as shore power, generators, or inverters. With a nominal current rating of 40A and support for inductive loads up to 8kW, it features fast open-transition switching (5–20 ms) and a configurable delay to stabilize voltage before switching back to the primary source. Compact and IP54-rated, it is ideal for marine, industrial, or off-grid environments where reliable and intelligent power management is required.

Description
Ask a Question

Victron VE Transfer Switch 10kVA 230V Automatic AC Source Selector

The Victron VE Transfer Switch 10kVA is a high-performance automatic switch for transferring AC loads between two independent 230V power sources. Designed for demanding applications, it ensures safe, open-transition (break-before-make) switching with configurable timing to prevent voltage fluctuations from damaging connected appliances. This unit is ideal for use in marine systems, mobile power installations, or commercial-grade off-grid power systems.

Automatically switches between two AC sources (shore, generator, inverter)
Rated for up to 10,000 VA / 40A continuous current
Fast switch time: 10–20 ms (close), 5–20 ms (open)
Adjustable input stabilization delay (approx. 10s)
Supports inductive loads up to 8 kW (e.g., air conditioners)
Auxiliary contact compatible with Digital Multi Control panel
Durable IP54 enclosure with RAL 7035 finish
Simple wall-mount installation with standard screw terminals

Specification	Value
Model	COS230103100
Rated Power	10,000 VA
Nominal Voltage	200–250 VAC (Single-phase)
Frequency	50 – 60 Hz
Input Current (each input)	40 A
Output Current	40 A
Max Inductive Load (motor)	8 kW
Transfer Time	Closing: 10–20 ms / Opening: 5–20 ms
Input 1 Delay	Approx. 10 seconds (adjustable)
Auxiliary Contact	200–240 VAC, 20 A, cos φ = 1
Protection Class	IP54
Operating Temperature	-5 °C to +60 °C
Humidity (non-condensing)	Max. 95%
Enclosure Color	RAL 7035
Dimensions (H × W × D)	175 × 215 × 120 mm
Weight	1.65 kg

Documents

Victron Energy VE Transfer Switch Size: 1,2 Mb
