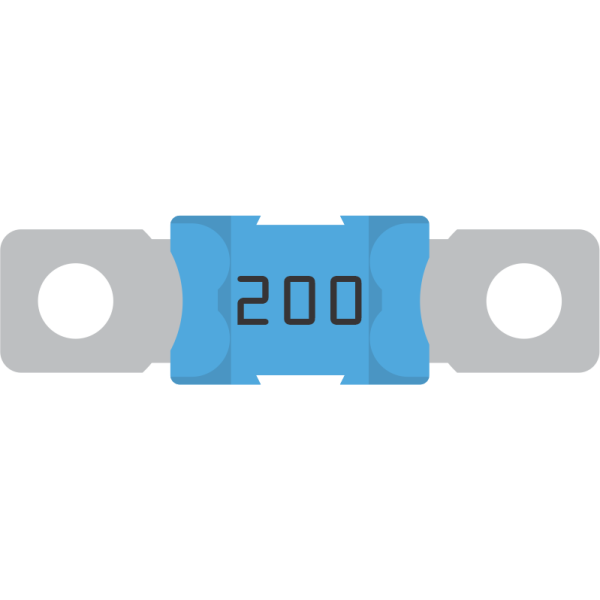

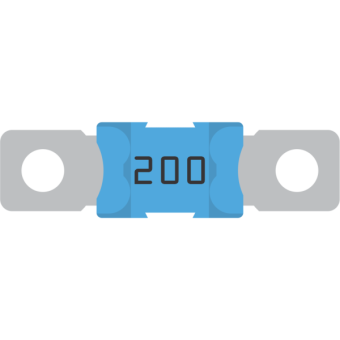

Victron Energy CIP137200010 - Mega Fuse 200A/58V

Victron Energy CIP137200010 - Mega Fuse 200A/58V

Key Features:

• Designed for high-current overcurrent protection, safeguarding 48V DC systems up to 200A.
• Optimized for use in demanding environments like automotive, marine, and off-grid applications where durability is essential.
• Solid-state design that provides stable performance under peak loads, ensuring safe and reliable operation.
• Low resistance (0.25 mΩ) and minimal voltage drop (80 mV) to enhance system efficiency and reduce heat generation.
• Compact form factor compatible with standard Mega Fuse holders, allowing for straightforward installation.

Specifications:

• Rated Current: 200A
• Maximum Voltage: 58V DC, ideal for 48V systems
• Peak Current Capability: Designed to handle surges up to 300A
• Approximate Voltage Drop: 80 mV, ensuring minimal loss during operation
• Cold Resistance: 0.25 mΩ, optimizing performance under load
• Fuse Type: MEGA fuse, engineered for high-current protection
• Mounting: Compatible with standard MEGA fuse holders for ease of integration
• Material: High-durability materials ensuring longevity even under continuous load conditions
• Operating Temperature Range: Built to withstand various temperatures in challenging conditions
• Dimensions: Standard MEGA fuse size for easy replacement and compatibility

Compatibility and Application:

• Perfect for 48V DC systems in applications such as automotive, marine, RV, and off-grid setups requiring high-current protection.
• Offers essential protection for wiring and sensitive equipment, preventing damage from excessive current flow.

Benefits:

• Provides effective overcurrent protection, ensuring the safety and reliability of critical energy systems.
• Minimizes voltage drop and maintains efficiency with low internal resistance, optimizing power distribution.
• Compatible with a range of high-power applications, ensuring versatile and dependable protection in demanding environments.
