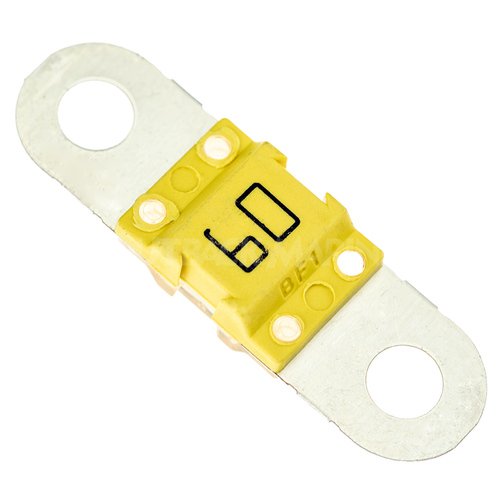

The Victron MIDI-Fuse 60A/58V (CIP133060010) is a high-reliability bolt-on fuse engineered for 48VDC systems. With a 60A current rating and 58V voltage limit, this compact MIDI-form fuse provides robust protection against overloads and short circuits. It offers a cold resistance of just 0.9 mΩ and a typical voltage drop of 70 mV, ensuring low loss and high safety in battery and inverter connections. Supplied individually.
- Description
- Ask a Question
-
Victron Energy MIDI-Fuse 60A/58V (1 pc) – High-Voltage DC Protection for 48V Circuits
The Victron MIDI-Fuse 60A/58V is a compact, high-performance DC fuse tailored for 48V system protection. Built to offer reliable current interruption in compact and high-efficiency DC installations, it fits standard MIDI holders and Victron Lynx modules, ensuring secure bolt-down installation and long-term reliability.
Main Features
- Rated current: 60 A
- Maximum voltage: 58 VDC
- Cold resistance: 0.9 mΩ
- Typical voltage drop: 70 mV
- Form factor: MIDI (bolt-down fuse)
- Supplied as a single fuse (1 piece)
- Compatible with Victron MIDI fuse holders and Lynx systems
Technical Specifications
Electrical Rated current 60 A Maximum system voltage 58 VDC Cold resistance 0.9 mΩ Typical voltage drop 70 mV Mechanical Mounting type Bolt-on MIDI format Packaging 1 fuse per unit
Application Notes
- Use for 48VDC battery lines, inverters, solar charge controllers, or DC buses
- Install in compatible MIDI fuse holders or Victron Lynx Distributor
- Ensure proper tightening torque to prevent thermal stress
The Victron MIDI-Fuse 60A/58V is an excellent choice for modern 48V installations requiring fast, efficient, and compact protection. Its low-resistance design enhances system efficiency, while high manufacturing quality ensures safe, consistent performance.
