€ 11,22
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Victron MIDI-Fuse 30A/58V (CIP133030010) is a compact bolt-on fuse optimized for 48VDC energy systems. Rated at 30A and 58VDC, it offers precise and fast circuit protection with a low voltage drop of just 65 mV and cold resistance of 2.0 mΩ. Ideal for low-current protection of 48V devices. Sold individually.
- Description
- Ask a Question
-

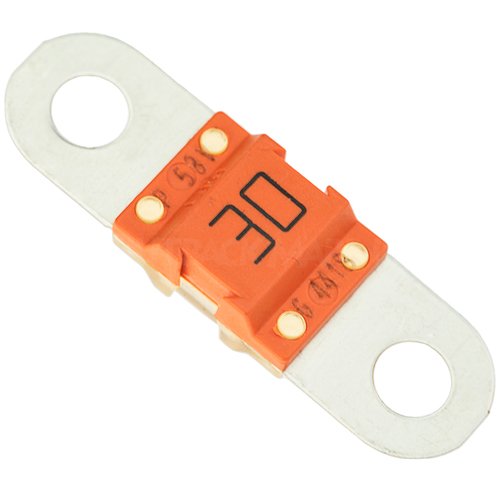

Victron Energy MIDI-Fuse 30A/58V (1 pc) – High-Voltage Blade Fuse for 48V Systems
The Victron MIDI-Fuse 30A/58V is a high-integrity protection fuse specifically designed for 48V applications. With a 30A current rating and bolt-down MIDI format, it ensures clean and safe disconnection of low-current DC circuits. Its low voltage drop and optimized resistance make it suitable for precision-protected lines in off-grid, solar, and telecom DC environments.
Main Features
- Rated current: 30 A
- Maximum system voltage: 58 VDC
- Cold resistance: 2.0 mΩ
- Typical voltage drop: 65 mV
- Form factor: MIDI (bolt-on blade fuse)
- Sold as single unit (1 piece per pack)
- Compatible with Victron MIDI fuse holders and Lynx modules
Technical Specifications
Electrical Rated current 30 A Maximum voltage 58 VDC Cold resistance 2.0 mΩ Typical voltage drop 65 mV Mechanical Mounting type MIDI bolt-on fuse Packaging 1 fuse per unit
Application Notes
- Recommended for small DC loads or control circuits in 48V battery systems
- Use in conjunction with Victron MIDI fuse holders or Lynx Distributor
- Ensure secure torque and clean contacts during installation
The Victron MIDI-Fuse 30A/58V offers efficient, compact protection for 48VDC systems. Engineered for reliability and safety, it's an essential component for small-to-medium Victron energy applications requiring accurate current protection.
Documents
Victron Energy Midi, Mega and ANL-fuses, and fuse holders Size: 160,8 Kb -
