The Victron MIDI-Fuse 60A/32V (CIP132060010) is a high-quality direct current blade-type fuse, designed for protecting circuits up to 60A in systems up to 32VDC. With a low internal resistance of 0.9 mΩ and voltage drop of approximately 70 mV, it offers fast and reliable overcurrent protection. Delivered in a pack of 5, this fuse is ideal for DC distribution boards, battery cables, and Victron Lynx systems using MIDI fuse holders.
- Description
- Ask a Question
-

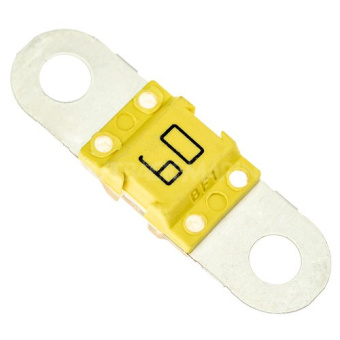

Victron Energy MIDI-Fuse 60A/32V (Pack of 5) – DC Blade-Type Protection Fuse
The Victron MIDI-Fuse 60A/32V is a compact, bolt-down fuse designed to protect DC circuits in battery, solar, and vehicle-based energy systems. It ensures reliable current limitation and minimizes voltage loss with its low internal resistance. Ideal for use in Victron fuse holders or Lynx DC distribution modules.
Main Features
- Current rating: 60A
- Maximum voltage: 32VDC
- Form factor: MIDI (bolt-on type)
- Cold resistance: 0.9 mΩ
- Typical voltage drop: 70 mV
- Supplied in a pack of 5
- Compatible with Victron MIDI fuse holders and Lynx systems
Technical Specifications
Electrical Rated current 60 A Maximum voltage 32 VDC Cold resistance 0.9 mΩ Typical voltage drop 70 mV Mechanical Mounting type Bolt-down (MIDI standard) Packaging 5 pieces per pack
Application Notes
- Use to protect DC power lines between batteries and loads (e.g., inverters, chargers)
- Install in MIDI fuse holders or Victron Lynx Distributor modules
- Ensure proper torque and terminal contact when bolting in
The Victron MIDI-Fuse 60A/32V offers robust, low-resistance circuit protection in compact DC systems. Its compatibility with standard MIDI fuse holders and Lynx modules makes it a reliable choice for off-grid, mobile, and marine installations.
Documents
Victron Energy Midi, Mega and ANL-fuses, and fuse holders Size: 160,8 Kb -
