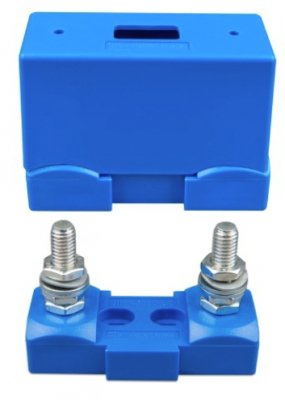

Victron Energy CIP100200100 - Modular Fuse Holder For Mega fuse

Article BB-CIP100200100

€ 40,13

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron Energy CIP100200100 Modular Fuse Holder for MEGA Fuse is a robust and flexible solution designed to protect high-current electrical systems with reliability and precision. Ideal for marine, automotive, off-grid, and industrial applications, this fuse holder is compatible with MEGA fuses, making it suitable for configurations requiring substantial overcurrent protection. Its modular design includes a dovetail interlocking feature, allowing multiple holders to be securely stacked, providing flexibility and scalability as system needs grow. This fuse holder supports high-current busbars with options for 5- and 6-position configurations, handling up to 500A and 1500A, respectively. These busbars feature M10 input connections and are perfect for use with powerful systems like Victron’s Multi and Quattro inverters.

Description
Ask a Question

Victron Energy CIP100200100 - Modular Fuse Holder For Mega Fuse

Key Features:
- Designed specifically for MEGA fuses, ensuring secure and stable fuse mounting for currents up to 500A
- Modular design featuring dovetail interlocking for quick and reliable stacking of multiple fuse holders
- Optional protective cap available, enhancing safety in environments prone to dust and vibrations
- Compatible with high-current busbars, allowing multiple fuse connections in power-intensive setups
- 5-position busbar option rated at 500A, with a robust 40 x 5 mm copper bar and single M10 input
- 6-position busbar option rated at 1500A, with dual M10 inputs, optimized for parallel configurations with Multi or Quattro inverter/chargers
- Corrosion-resistant thermoplastic construction suitable for demanding marine and industrial applications
Specifications:
- Fuse type: MEGA fuse, supporting high-current protection
- Interlocking system: Dovetail feature, allowing secure stacking of multiple holders
- High-current busbar options:
  - 5-position busbar: 500A, single M10 input
  - 6-position busbar: 1500A, dual M10 inputs
- Material: High-grade, corrosion-resistant thermoplastic
- Weight: Approximately 0.15 kg
- Dimensions: 60 x 40 x 50 mm (without cap)
- Operational temperature range: -40°C to +85°C
Compatibility and Application:
- Compatible with MEGA fuses, ideal for high-power electrical systems in marine, automotive, and off-grid environments
- Suitable for use with Victron Multi and Quattro inverters, providing reliable protection in multi-fuse setups
- Excellent choice for configurations needing expandable and modular fuse holders
Benefits:
- Ensures reliable overcurrent protection, safeguarding sensitive components from damage
- Flexible modular design allows for easy customization and future expansion of electrical systems
- Constructed from durable, corrosion-resistant materials, built to withstand harsh environments
- Reduces installation complexity and supports high-current applications, ideal for demanding electrical systems
