The Victron Smart BatteryProtect BP-48-100 protects 48V battery systems from excessive discharge and over-voltage damage by disconnecting non-critical loads. With a 100A continuous load rating and Bluetooth configurability via VictronConnect, it allows full control over disconnect/reconnect thresholds and system behavior. This unit features delayed switching, MOSFET-based ignition-proof design, and full VE.Bus BMS compatibility — all within a compact, high-resilience IP67-rated enclosure.
- Description
- Ask a Question
-

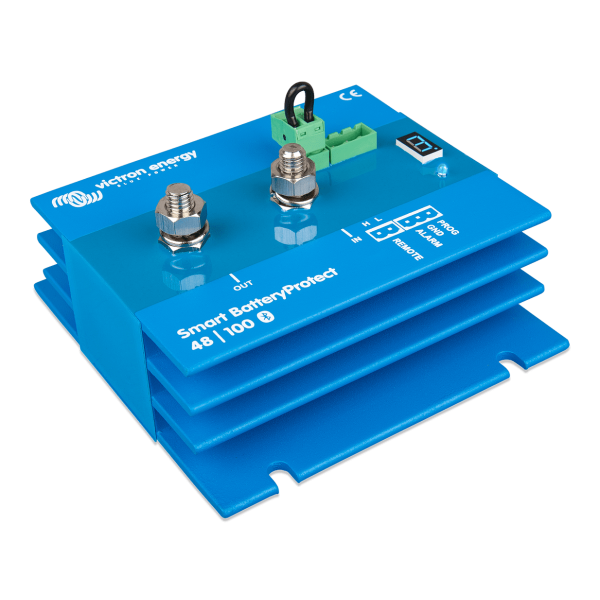

Victron Energy Smart BatteryProtect BP-48-100, 48V, 100A with Bluetooth
The Smart BatteryProtect BP-48-100 ensures safe and efficient load control in 48V battery systems by automatically disconnecting the load during undervoltage or overvoltage conditions. It offers programmable settings via Bluetooth or manual pin selection, delayed disconnect and reconnect logic, and ultra-low standby power consumption — essential for Li-ion protection. The unit is ideal for telecom, solar, and industrial systems with critical power reliability needs.
Parameter Specification Model Smart BatteryProtect BP-48-100 Nominal Voltage 48V (operating range: 24–70 V) Max Continuous Load Current 100 A Peak Current (30 seconds) 250 A Default Disconnect / Reconnect Thresholds 42V / 48V Programmable Thresholds Yes (via Bluetooth or programming pin) Over-voltage Protection Disconnects at >64 V Bluetooth Programming Yes (VictronConnect app) Current Consumption (BLE On) 1.9 mA (on), 1.7 mA (off or LV shutdown) Current Consumption (BLE Off) 1.7 mA (on), 1.6 mA (off or LV shutdown) Alarm Output 12s delay, 50 mA max, short-circuit proof Load Disconnect Delay 90 seconds Reconnect Delay 30 seconds Compatible BMS VE.Bus BMS Ignition Proof Yes (MOSFET-based) IP Rating IP67 (electronics), IP00 (terminals) Connection Type M8 bolts (torque: 9 Nm) Dimensions (H x W x D) 62 x 123 x 120 mm Weight 0.8 kg (1.8 lbs)
Key Features:
- Bluetooth-enabled programming with VictronConnect app.
- Protects against over-discharge and over-voltage (up to 64V).
- Silent, spark-free MOSFET operation — no relay contacts.
- Supports VE.Bus BMS for integrated Li-ion protection.
- Customizable voltage thresholds and timed logic.
- Low current draw, ideal for post-shutdown scenarios.
Applications:
- 48V Li-ion or lead-acid telecom and solar battery systems
- Industrial and off-grid energy systems with smart load control
- Smart marine and mobile energy infrastructures
