The Victron BatteryProtect BP-220 is a heavy-duty load disconnect unit that automatically protects 12V or 24V batteries from excessive discharge or over-voltage. It supports up to 220A continuous load and includes programmable voltage thresholds, delayed disconnect/reconnect timers, over-voltage protection, and VE.Bus BMS compatibility. Featuring MOSFET-based ignition-proof switching and ultra-low power consumption, this unit is ideal for demanding marine, vehicle, and solar systems.
- Description
- Ask a Question
-

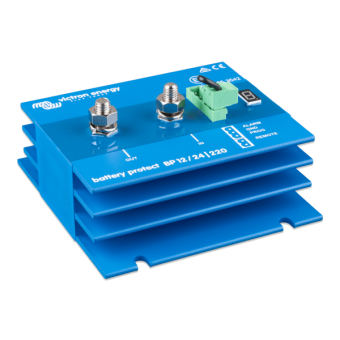

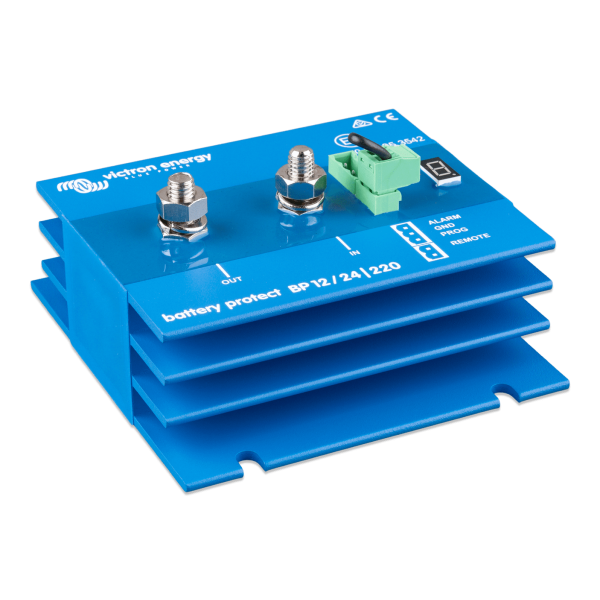

Victron Energy BatteryProtect BP-220, 12/24V, 220A
The Victron BatteryProtect BP-220 safeguards battery health by disconnecting non-essential loads when voltage falls below or rises above safe levels. Designed for large-capacity battery banks, it handles up to 220A continuous current, with a peak surge of 600A for 30 seconds. Its solid-state MOSFET design enables silent, spark-free switching and extremely low power draw. This version is fully compatible with Li-ion batteries and Victron VE.Bus BMS systems.
Parameter Specification Model BatteryProtect BP-220 System Voltage 12V / 24V (auto-detect) Max Continuous Load Current 220 A Peak Current (30 seconds) 600 A Operating Voltage Range 6 – 35 V Voltage Drop Extremely low (MOSFET-based) Default Disconnect / Reconnect Thresholds 10.5V / 12V or 21V / 24V Programming Interface 7-segment LED selector Load Disconnect Delay 90 seconds Reconnect Delay 30 seconds Alarm Output 50 mA max, short-circuit proof, 12s delay Current Consumption 1.5 mA (on), 0.6 mA (off or LV shutdown) Over-voltage Protection Disconnect at >16V / 32V Operating Temperature -40°C to +40°C (100% load), up to +50°C (derated) IP Rating IP67 (electronics), IP00 (connections) Connection Type M8 Dimensions (H x W x D) 62 x 123 x 120 mm Weight 0.8 kg (1.8 lbs)
Key Features:
- Automatic disconnection of loads under low or high voltage.
- High current handling (up to 220A continuous, 600A surge).
- Programmable settings via onboard 7-segment display.
- Fully compatible with Li-ion and VE.Bus BMS control systems.
- Ultra-low power draw and ignition-proof MOSFET operation.
- Delayed disconnect and reconnect logic to prevent nuisance triggers.
Applications:
- High-power marine DC systems
- Off-grid and mobile solar setups
- Heavy-duty vehicle battery management
- Backup power systems protecting critical loads
Documents
Victron Energy BatteryProtect 65A 100A 220A Size: 279,3 KbVictron BatteryProtect 12 24V 220A Manual Size: 929,5 KbVictron BP 220 Manual Size: 929,5 Kb -
