The Victron Energy GX Tank 140 (BPP920140100) is a USB-connected interface that allows up to four tank level sensors to be integrated into a Victron GX monitoring system. Supporting both 4–20 mA current and 0–10 V voltage sensors, it simplifies tank monitoring for fuel, water, or waste systems. Two of the four channels include built-in 24 V supply outputs, while the remaining two require external power. With configurable scaling, averaging (1–60 s), and alarm detection for out-of-range readings, the GX Tank 140 offers advanced, reliable tank level tracking locally on GX devices and remotely via the VRM portal. Compatible with NMEA 2000 for marine integration.

Description
Ask a Question

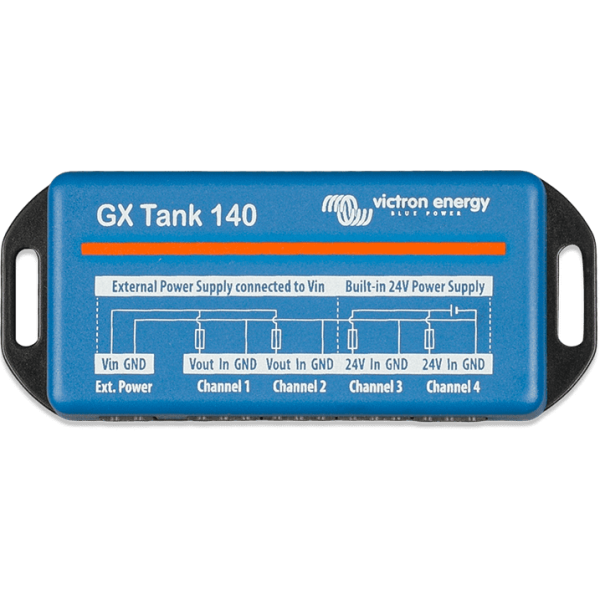

Victron Energy BPP920140100 – GX Tank 140

The GX Tank 140 is a versatile tank sensor interface designed for integration with Victron GX system monitors such as the Cerbo GX. It supports up to four tank inputs via USB and accepts both current (4–20 mA) and voltage (0–10 V) sensors. Data is available both locally and remotely via the Victron VRM portal and can be shared over NMEA 2000 for marine displays.

Key Features:

Connects up to 4 analog tank level sensors (current or voltage type)
Supports both 4–20 mA and 0–10 V sensors
2 channels with integrated 24 V power supply for direct sensor power
2 additional channels for externally powered sensors (fused outputs included)
USB connection to GX devices (data and power)
Sensor scaling configurable (e.g., 0–5 V input range)
Averaging filter (1–60 seconds) for stable readings
Built-in diagnostics and alarm for out-of-range or faulty sensors
Transmits tank data to NMEA 2000 network when used with GX device

Technical Specifications:

Parameter	Details
Product Code	BPP920140100
Number of Tank Inputs	4 analog inputs
Input Types	4–20 mA (current) and 0–10 V (voltage)
Built-in Sensor Power	2 channels with 24 V power output
External Power Required	2 channels via fused input terminals
Communication Interface	USB to GX Device
Power Supply	Powered through USB connection
Averaging (Damping)	1–60 seconds (configurable)
Alarm Detection	Triggers on out-of-range or faulty signal
NMEA 2000 Support	Yes (via connected GX Device)
Compatible Devices	Cerbo GX, Color Control GX, Venus GX, and other GX products

Compatibility and Application:

Ideal for monitoring fuel, fresh water, black water, grey water, and oil tanks
Works with both commercial and marine-grade analog tank sensors
Integrates with GX systems for remote and local tank level monitoring
Shares tank data over NMEA 2000 for marine chartplotters and MFDs

Benefits:

Provides comprehensive tank level visibility through GX devices and the VRM portal
Supports multiple sensor types and flexible power supply options
Plug-and-play USB interface for fast and simple installation
Built-in diagnostics ensure reliability with alarms for sensor faults
Ideal solution for boats, off-grid homes, RVs, and remote monitoring systems

Documents

Victron Energy GX Tank 140 Size: 1,7 Mb
