The Victron Energy Venus GX (BPP900400100) is a compact and flexible communication centre for monitoring and controlling Victron-based energy systems. Designed as the heart of your installation, it connects to inverters, battery monitors, solar charge controllers, and more—enabling seamless system integration and full remote access via the Victron Remote Management (VRM) portal. With Ethernet, WiFi, USB, and VE interfaces, it supports automatic generator control, tank level monitoring, and ESS management. Though now superseded by the more powerful Cerbo GX, the Venus GX remains a reliable option for various off-grid, marine, and ESS applications.
- Description
- Ask a Question
-

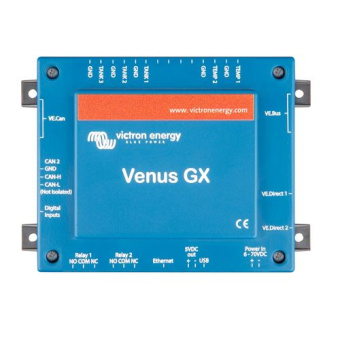

Victron Energy BPP900400100 – Venus GX Communication Centre
The Venus GX is a versatile communication hub that provides centralized monitoring and control of Victron-based energy systems. Supporting real-time data access, automated controls, and full remote management, it’s ideal for marine, RV, off-grid, and energy storage applications. While officially marked as deprecated in favor of the Cerbo GX, the Venus GX remains a functional and reliable solution with broad device compatibility.
Key Features:
- Remote access via VRM portal, Remote Console, LAN, or WiFi
- Full integration with Victron inverters, chargers, MPPTs, battery monitors, and more
- Automatic generator start/stop based on SoC, voltage, or load
- Data logging to internal memory, USB drive, or microSD card
- Tank and temperature input support (configurable for EU/US standards)
- Compact DIN-rail compatible design for flexible installations
- Multi-language support and Modbus-TCP gateway functionality
- Powered by Venus OS – embedded Linux
Technical Specifications:
Parameter Value Product Code BPP900400100 Power Supply 8 – 70 V DC Current Draw 210 mA @ 12 V / 110 mA @ 24 V / 60 mA @ 48 V VE.Direct Ports 2 isolated VE.Bus Ports 2 RJ45 isolated VE.Can Ports 2 RJ45 isolated USB Ports 2 USB Host ports Ethernet 10/100/1000 Mb RJ45 WiFi Access Point and Client mode Relay Output NO/COM/NC, 6 A @ 250 VAC / 30 VDC Tank Level Inputs 3 (EU 0–180 Ω / US 240–30 Ω) Temperature Inputs 2 (requires sensor ASS000001000) Dimensions (H x W x D) 45 x 143 x 96 mm Operating Temp. -20°C to +50°C Protection Rating IP21
Supported Devices:
- MultiPlus and Quattro inverters (single, split-, and three-phase)
- MPPT solar chargers (VE.Direct and VE.Can)
- BMV battery monitors (BMV-700, BMV-712, etc.)
- Skylla-i battery chargers
- Lynx Shunt, Lynx Ion + Shunt, Lynx BMS
- Fronius PV inverters
- NMEA2000-compatible tank sensors
- USB GPS modules for location tracking via VRM
Applications:
- Marine: Monitor system state and control generators remotely while at sea
- RVs and Motorhomes: Check tank levels, battery status, and solar performance from anywhere
- Off-grid Installations: Manage energy sources, generators, and ESS functions
- Energy Storage Systems: Serve as the system controller in full ESS configurations
Benefits:
- Centralized system control from anywhere in the world
- Full support for VRM portal and Remote Console access
- Compact footprint ideal for small or mobile installations
- Powerful generator automation and data logging capabilities
- Still supported, though now superseded by the Cerbo GX for new systems
Documents
Victron Energy Venus GX Size: 368,1 KbVictron Venus GX Manual Size: 16,9 Mb -
