The Victron Blue Smart IP67 24V/12A (120V) charger delivers robust, high-efficiency charging for large 24V battery systems. With 12A output, a 5-stage adaptive charging algorithm, Bluetooth monitoring, and recovery from 0V, it's engineered for harsh environments where reliability is essential. Fully waterproof and encapsulated, it's ideal for marine, RV, industrial, and off-grid use.
- Description
- Ask a Question
-

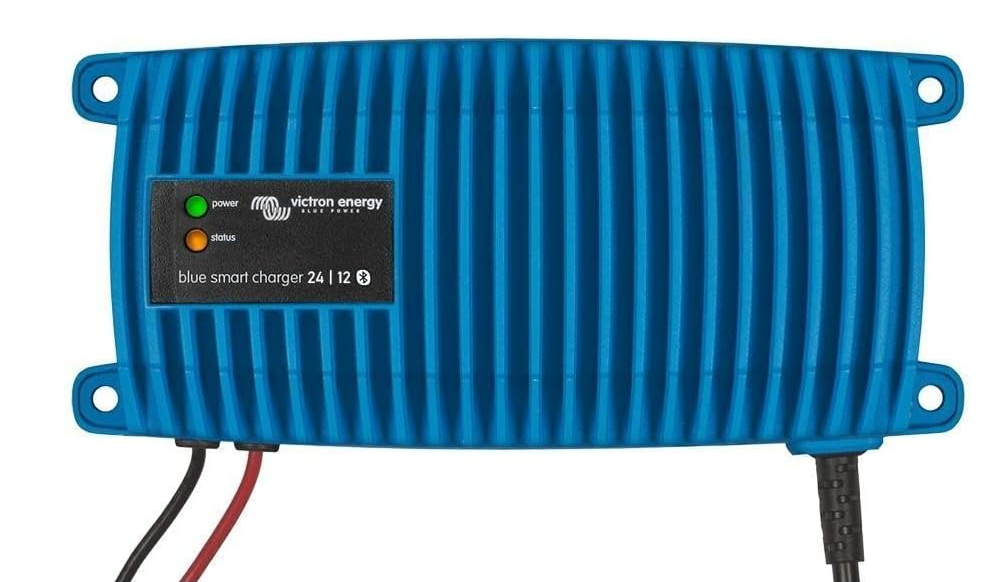

Victron Energy BPC241247106 - Blue Smart IP67 120V Battery Charger 24V/12A (1 Output) is a rugged, high-capacity charger built for tough conditions. Encapsulated in a waterproof aluminum housing, it delivers professional-grade charging with advanced battery care and remote monitoring via Bluetooth.
Main Features:
- 12A output current – suitable for 24V battery banks between 60–180Ah
- Low current mode (4A) for maintenance or smaller battery capacities
- Bluetooth Smart enabled – control and monitor settings with the VictronConnect app
- Adaptive 5-stage charging: Bulk, Absorption, Recondition, Float, Storage
- Recovery from deeply discharged batteries (supports 0V start)
- Battery support: Lead-acid (AGM, GEL, Flooded) and LiFePO₄ lithium batteries
- Storage mode prevents battery aging during periods of inactivity
- Can be used as a constant-voltage power supply
- IP67-rated: waterproof, oil- and dust-resistant, vibration-tolerant
- Thermal protection – output derates above 40°C, but operation continues up to 60°C
Technical Specifications:
Parameter Value Part Number BPC241247106 Input Voltage 100–135 VAC Input Frequency 45–65 Hz Charge Voltage – Absorption 28.8V (Normal), 29.4V (High), 28.4V (Li-ion) Charge Voltage – Float 27.6V (Normal), 27.0V (Li-ion) Charge Voltage – Storage 26.4V (Normal), 27.0V (Li-ion) Charge Current 12 A Low Current Mode 4 A Charging Algorithm 5-stage adaptive Battery Recovery Yes – charges from 0V Efficiency 96% No Load Power Consumption 0.5 W Operating Temperature -30°C to +60°C (derates 3% per °C above 40°C) Humidity Up to 100% Enclosure Aluminium, resin encapsulated (IP67) Battery Cable 1.5 m red/black AC Cable 1.5 m with NEMA 5-15 plug Dimensions (H x W x D) 99 x 219 x 65 mm Weight 2.4 kg (5.3 lbs) Certifications Safety: UL 1236, CSA C22.2, EN 60335-1 / -2-29
EMC: EN 55014-1/2, EN 61000-6-3
Automotive: EN 55014-2, EN 61000-6-1/2/3
Applications:
- Marine and offshore charging for 24V systems
- RVs, camper vans, and fleet vehicles
- Solar-powered installations and off-grid energy systems
- Battery maintenance in heavy-duty equipment and workshops
Warranty: 5 years
Brand: Victron EnergyLooking for a different Victron Charger? Explore our full Victron Blue Smart IP67 Chargers product range.
Documents
Victron Energy Blue Smart IP67 Charger 120VAC Size: 151,6 Kb -
