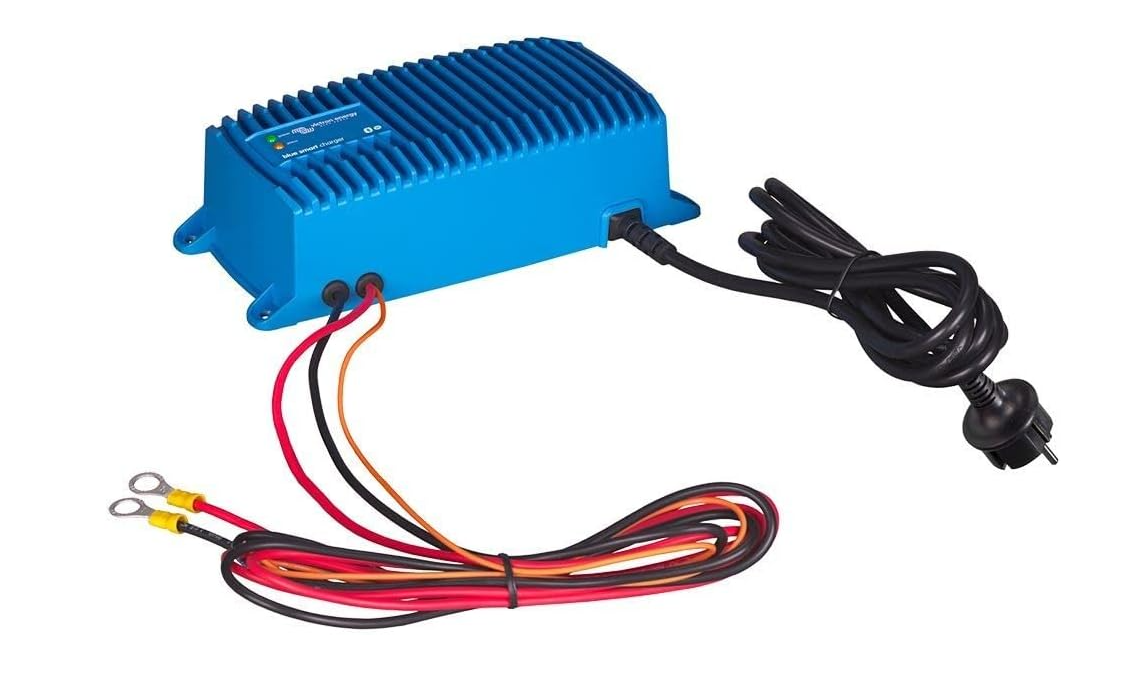

The Victron Blue Smart IP67 24V/8A (120V) charger is a fully waterproof, shockproof, and ignition-protected smart charger for demanding 24V battery systems. Offering 8A output and a 5-stage adaptive charging algorithm, it supports lead-acid and lithium batteries, recovery from 0V, and Bluetooth configuration via the VictronConnect app. A rugged solution for marine, off-grid, and vehicle environments.
- Description
- Ask a Question
-
Victron Energy BPC240815106 - Blue Smart IP67 120V Battery Charger 24V/8A (1 Output) is designed for professionals who demand reliable charging performance in challenging environments. Its sealed construction and high-efficiency charging profile make it a top choice for marine, mobile, and industrial applications.
Main Features:
- 8A charge current suitable for 24V batteries from 40–120Ah
- Low current mode (3A) for maintenance or smaller battery banks
- Adaptive 5-stage charge algorithm: Bulk, Absorption, Recondition, Float, Storage
- Bluetooth Smart connectivity – full control and monitoring via VictronConnect
- Automatic recovery mode for charging from 0V (deep discharge)
- Supports lead-acid (AGM, GEL, Flooded) and LiFePO₄ (lithium) batteries
- Storage mode helps prevent sulfation and prolong battery life
- May be used as a constant-voltage power supply
- IP67-rated: waterproof, oil-resistant, and fully encapsulated aluminum casing
- Thermal protection with output derating above 40°C
Technical Specifications:
Parameter Value Part Number BPC240815106 Input Voltage Range 100–135 VAC Input Frequency 45–65 Hz Charge Voltage – Absorption 28.8V (Normal), 29.4V (High), 28.4V (Li-ion) Charge Voltage – Float 27.6V (Normal), 27.0V (Li-ion) Charge Voltage – Storage 26.4V (Normal), 27.0V (Li-ion) Charge Current 8 A Low Current Mode 3 A Charging Algorithm 5-stage adaptive Battery Recovery Yes – supports 0V battery recovery Efficiency 96% No Load Power Consumption 0.5 W Operating Temperature -30°C to +60°C (derates 3%/°C above 40°C) Humidity Up to 100% (non-condensing) Enclosure Material Cast aluminium, blue RAL 5012 Enclosure Protection IP67 – waterproof and fully sealed AC Cable 1.5 m with NEMA 5-15 plug Battery Cable 1.5 m red/black Dimensions (H x W x D) 99 x 219 x 65 mm Weight 2.4 kg (5.3 lbs) Certifications Safety: UL 1236, CSA C22.2, EN 60335-1 / -2-29
EMC: EN 55014-1/2, EN 61000-6-3
Automotive: EN 55014-2, EN 61000-6-1/2/3
Applications:
- 24V marine systems and bilge/power batteries
- Off-grid solar systems with 24V banks
- Utility and fleet vehicle battery maintenance
- Industrial machinery or backup energy systems
Warranty: 5 years
Brand: Victron EnergyLooking for a different Victron Charger? Explore our full Victron Blue Smart IP67 Chargers product range.
