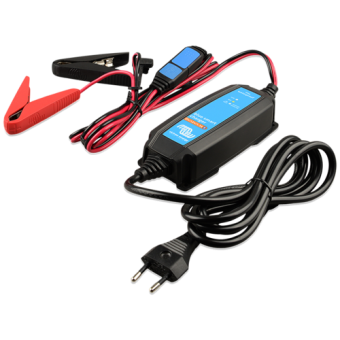

Victron Energy BPC240531064R - Blue Smart IP65 230V Battery Charger 24/5A + DC Connector is a smart and compact charger designed for reliable charging of 24V battery systems. Featuring adaptive charging technology, rugged durability, and wireless connectivity, it offers safe and efficient charging for batteries in vehicles, boats, and off-grid systems.
Main Features:
- 5A charging current – suitable for 24V batteries from 20–50 Ah
- Seven-step smart charging algorithm for lead-acid (AGM, GEL, Flooded) and lithium (LiFePO₄) batteries
- Bluetooth-enabled – control and monitor with the VictronConnect app
- Recovery function for fully discharged (0V) batteries
- IP65-rated – waterproof, dustproof, and chemical resistant housing
- Low current mode (2A) for smaller or sensitive batteries
- Temperature compensation for accurate charging in varying environments
- Silent operation – no cooling fan or moving parts
Technical Specifications:
Parameter Value Part Number BPC240531064R Input Voltage 100–250 VAC, 45–65 Hz Output Voltage 24V nominal Charge Current 5 A (Normal), 2 A (Low Current Mode) Battery Capacity Range 20–50 Ah Charging Algorithm 7-stage: Test, Bulk, Absorption, Recondition, Float, Storage, Refresh Charge Voltage (Absorption) 28.8 V (Normal), 29.4 V (High), 28.4 V (Li-ion) Charge Voltage (Float / Storage) 27.6 V / 26.4 V Efficiency Up to 95% Temperature Compensation 32 mV/°C (lead-acid only) Power Supply Mode Yes Back Current Drain 0.7 Ah/month (~1 mA) Operating Temperature -40°C to +60°C (full rated output up to 30°C) Humidity (non-condensing) Max 95% Protection Features Reverse polarity, output short circuit, over-temperature Enclosure Protection IP65 (dust and water resistant) Dimensions (H x W x D) 47 x 95 x 190 mm Weight 0.9 kg Certifications EN 60335-1/-2-29, EN 55014-1/2, EN 61000-6-1/2/3
Included Accessories:
- DC connector (1.5 m)
- Extension cable (2 m)
- M8 battery eyelet connectors
Optional Accessories:
- Crocodile clamps
- Battery indicator panel
- Fused eyelets (M6/M8)
- Wall mount, rubber bumper, carry case
Applications: Ideal for 24V batteries in light-duty vehicles, boats, equipment maintenance, and off-grid backup systems. The 24/5 IP65 charger ensures reliable, long-life charging performance with smart diagnostics and wireless convenience.
Warranty: 5 years
Brand: Victron EnergyAlso available with AU/NZ (AS/NZS 3112) and CEE 7/16 plug types:
- BPC240531014R – Blue Smart IP65 Charger 24/5 + DC connector with AU/NZ plug (AS/NZS 3112)
- BPC240531034R – Blue Smart IP65 Charger 24/5 + DC connector with CEE 7/16 plug
Please contact us to request a specific plug version.
Looking for a different Victron Charger? Explore our full Victron Blue Smart IP65 Chargers product range.
Documents
Victron Energy 230V Blue Smart IP65 Charger Size: 2,2 Mb -
