SKU:
BB BPC240515106
€ 157,08
1-2 weeks delivery time
-
+

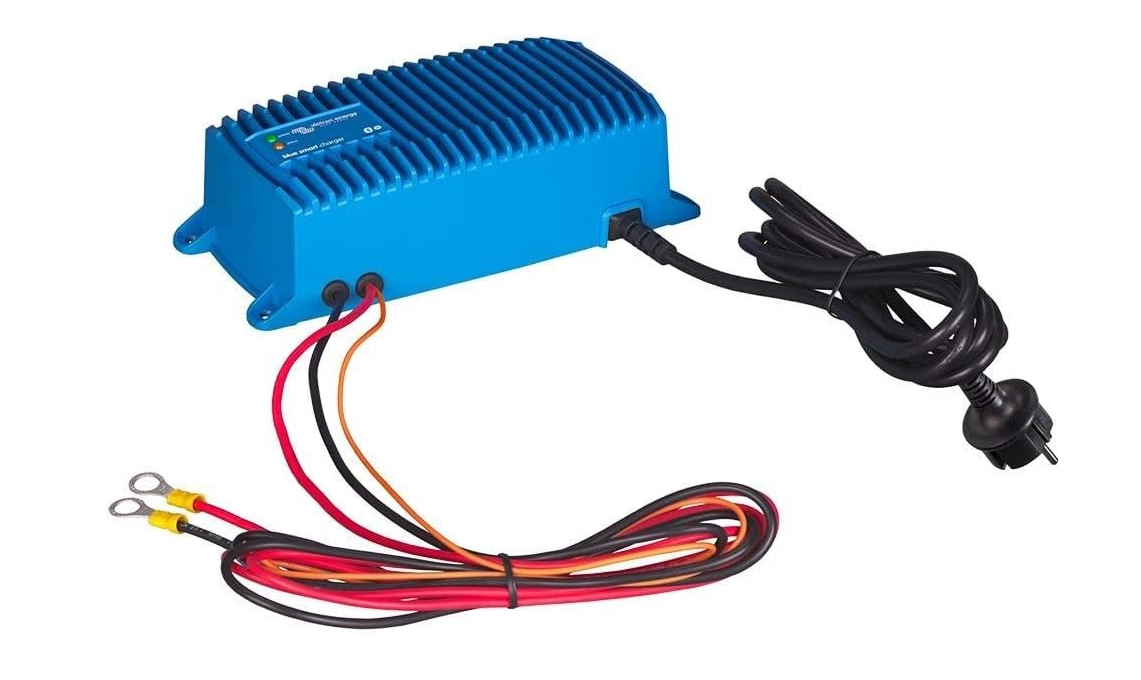

The Victron Blue Smart IP67 24V/5A (120V) charger is a compact, rugged, and waterproof battery charger designed for 24V battery systems. Featuring an adaptive 5-stage charge algorithm, lithium compatibility, 0V recovery, and Bluetooth connectivity, it ensures safe and efficient charging even in challenging environments. Ideal for marine, RV, and industrial use.
- Description
- Ask a Question
-
Victron Energy BPC240515106 - Blue Smart IP67 120V Battery Charger 24V/5A (1 Output) is a fully encapsulated, professional-grade charger built for use in the harshest conditions. It offers precise charging, maintenance capabilities, and modern connectivity for 24V battery banks in mobile, marine, and off-grid systems.
Main Features:
- 5A output for 24V battery systems (optimal for 30–80Ah batteries)
- Low current mode (2A) for float maintenance or small-capacity batteries
- Bluetooth Smart integration – monitor and configure via VictronConnect app
- Adaptive 5-stage charging algorithm: Bulk, Absorption, Recondition, Float, Storage
- Recovery mode supports charging of deeply discharged batteries from 0V
- Compatible with lead-acid (AGM, GEL, Flooded) and LiFePO₄ (lithium) batteries
- Storage mode reduces float voltage to prevent corrosion and sulfation
- Functions as a constant-voltage power supply
- IP67-rated: waterproof, oil-resistant, and ignition-protected
Technical Specifications:
Parameter Value Part Number BPC240515106 Input Voltage 100–135 VAC Input Frequency 45–65 Hz Charge Voltage – Absorption 28.8V (Normal), 29.4V (High), 28.4V (Li-ion) Charge Voltage – Float 27.6V (Normal), 27.0V (Li-ion) Charge Voltage – Storage 26.4V (Normal), 27.0V (Li-ion) Charge Current 5 A Low Current Mode 2 A Charging Algorithm 5-stage adaptive Battery Recovery Function Yes (from 0V) Efficiency 94% No Load Power Consumption 0.5 W Operating Temperature -30°C to +60°C (derating above 40°C) Humidity Up to 100% Enclosure IP67 – cast aluminium, fully sealed with resin AC Cable 1.5 m with NEMA 5-15 plug Battery Cable 1.5 m red/black cable Dimensions (H x W x D) 85 x 211 x 60 mm Weight 1.8 kg (4.0 lbs) Certifications Safety: UL 1236, CSA C22.2, EN 60335-1 / -2-29
EMC: EN 55014-1/2, EN 61000-6-3
Automotive: EN 55014-2, EN 61000-6-1/2/3
Applications:
- 24V marine and boat battery charging
- RVs, camper vans, and utility vehicles
- Solar-powered or mobile backup systems
- Battery maintenance in industrial environments
Warranty: 5 years
Brand: Victron EnergyLooking for a different Victron Charger? Explore our full Victron Blue Smart IP67 Chargers product range.
Documents
Victron Energy Blue Smart IP67 Charger 120VAC Size: 151,6 Kb -
