SKU:
BB BPC121715106
€ 206,17
1-2 weeks delivery time
-
+
The Victron Blue Smart IP67 12V/17A (120V) is a fully encapsulated, waterproof smart battery charger with Bluetooth connectivity and adaptive 5-stage charging. Designed for 12V batteries in harsh environments, it delivers 17A of high-efficiency power and supports recovery from 0V, lithium battery compatibility, and long-term maintenance via intelligent storage mode. Ideal for marine, RV, and mobile power setups.
- Description
- Ask a Question
-

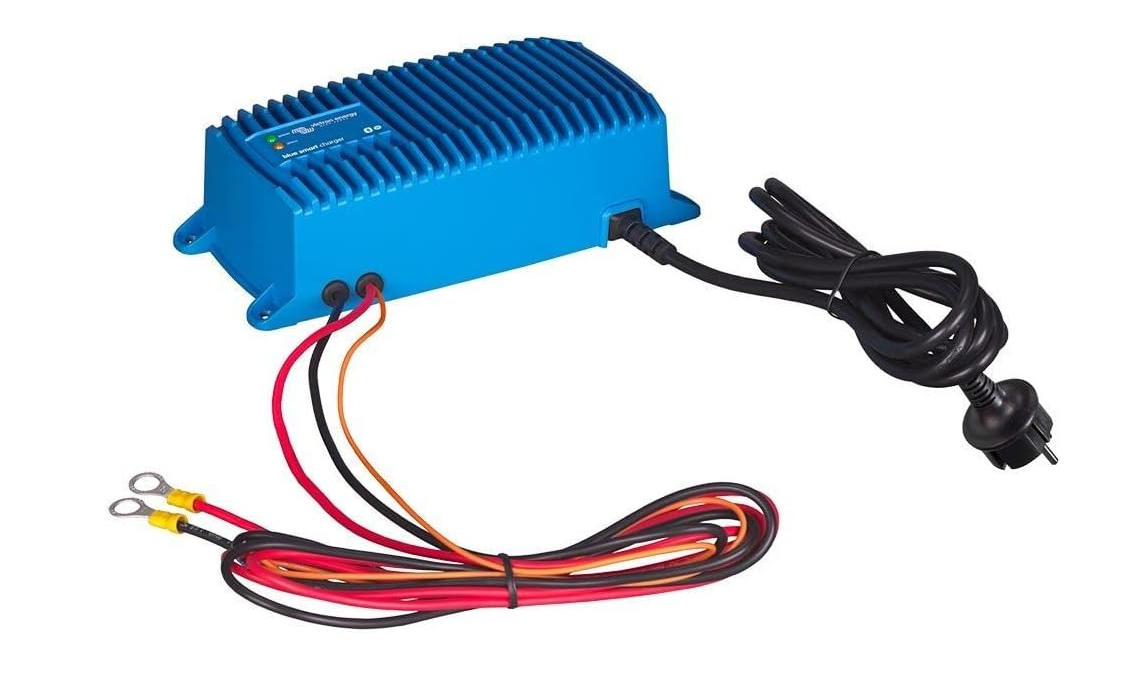

Victron Energy BPC121715106 - Blue Smart IP67 120V Battery Charger 12V/17A (1 Output) is a professional-grade battery charger designed for rugged applications. Waterproof, shockproof, and sealed to IP67 standards, it delivers fast and safe charging for demanding 12V systems with full Bluetooth control and advanced battery management.
Main Features:
- 12V charger with 17A output – ideal for large battery banks (70–170Ah)
- Low current mode (6A) for smaller or maintenance charging
- Adaptive 5-stage charging algorithm: Bulk, Absorption, Recondition, Float, Storage
- Bluetooth Smart connectivity – configure and monitor via VictronConnect app
- Recovery mode for deeply discharged batteries (0V start capability)
- Compatible with lead-acid (AGM, GEL, Flooded) and lithium (LiFePO₄) batteries
- Storage mode reduces float voltage to prevent corrosion and sulfation
- Use as constant voltage power supply mode (manual selection)
- Thermal protection with automatic current derating above 40°C
- IP67-rated – fully waterproof, oil- and dust-resistant, ignition protected
Technical Specifications:
Parameter Value Part Number BPC121715106 Input Voltage Range 100–135 VAC Frequency 45–65 Hz Charge Voltage – Absorption 14.4V (Normal), 14.7V (High), 14.2V (Li-ion) Charge Voltage – Float 13.8V (Normal), 13.5V (Li-ion) Charge Voltage – Storage 13.2V (Normal), 13.5V (Li-ion) Charge Current 17 A Low Current Mode 6 A Charging Algorithm 5-stage adaptive Battery Recovery Supports charging from 0V Efficiency Up to 95% No Load Power Consumption 0.5 W Operating Temperature -30°C to +60°C (derates 3%/°C above 40°C) Humidity Up to 100% Enclosure Rating IP67 – waterproof and fully encapsulated Enclosure Material Aluminium (blue RAL 5012), resin sealed Battery Connection 1.5 m red/black cable AC Connection 1.5 m with NEMA 5-15 plug Dimensions (H x W x D) 99 x 219 x 65 mm Weight 2.4 kg (5.3 lbs) Certifications Safety: UL 1236, CSA C22.2, EN 60335-1 / -2-29
EMC: EN 55014-1/2, EN 61000-6-3
Automotive: EN 55014-2, EN 61000-6-1/2/3
Applications:
- Marine battery charging in wet environments
- RV and vehicle battery charging with rugged use
- Mobile solar and inverter system charging
- Industrial battery backup and maintenance
Warranty: 5 years
Brand: Victron EnergyLooking for a different Victron Charger? Explore our full Victron Blue Smart IP67 Chargers product range.
Documents
Victron Energy Blue Smart IP67 Charger 120VAC Size: 151,6 Kb -
