Victron Energy BPC121313006 - Blue Smart IP67 Charger 12/13(1) 230V

Article Victron Energy BPC121313006

€ 175,56

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

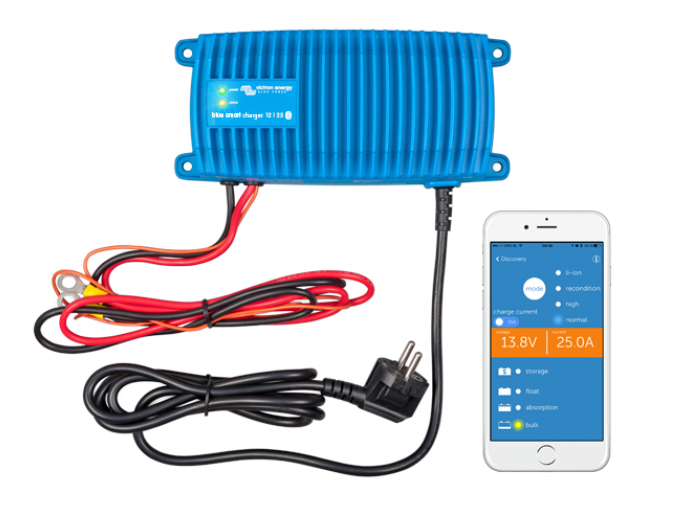

The Victron Energy BPC121313006 - Blue Smart IP67 Charger 12/13(1) 230V is an advanced battery charging solution designed for reliable performance in demanding environments. With an output of 13A and a waterproof IP67 rating, this charger is perfect for automotive, marine, and off-grid applications. It features an ultra-efficient charging system with up to 92% efficiency, significantly reducing heat loss and energy consumption. The integrated Bluetooth functionality allows users to monitor and configure the charger via the VictronConnect app, providing real-time insights into charging status and battery health. Equipped with a smart adaptive charging algorithm, this charger optimizes the charging process for lead-acid and Li-ion batteries, ensuring longevity and peak performance. With its robust aluminum casing and advanced features, the Blue Smart IP67 Charger is the ideal choice for those seeking a durable and efficient charging solution.

Description
Ask a Question

Victron Energy BPC121313006 - Blue Smart IP67 Charger 12/13(1) 230V

Key Features:
- Ultra-efficient charging with up to 92% efficiency, significantly reducing heat loss
- Bluetooth Smart enabled for wireless monitoring and configuration via the VictronConnect app
- Fully encapsulated design, waterproof and shockproof, making it suitable for harsh environments
- Adaptive 4-stage charging algorithm: Bulk, Absorption, Float, and Storage for optimal battery management
- Storage mode minimizes maintenance and aging of batteries not in use
- Capable of charging Li-ion (LiFePO₄) batteries with a dedicated algorithm
- Protected against overheating with automatic output current reduction at elevated temperatures
- Two LED indicators for status monitoring: Yellow for charging status and Green for power on
Specifications:
- Input Voltage Range: 180-265 VAC, 45-65 Hz
- Output Voltage: 12V DC
- Output Current: 13A
- Output Power: 156W
- Charge Voltage (Absorption):
  - Normal: 14.4V
  - High: 14.6V
  - Li-ion: 14.2V
- Charge Voltage (Float):
  - Normal: 13.8V
  - High: 13.8V
  - Li-ion: 13.35V
- Charge Voltage (Storage):
  - Normal: 13.2V
  - High: 13.8V
  - Li-ion: Not applicable
- Temperature Range: -20°C to +60°C (full rated output up to 40°C)
- Humidity: Up to 100%
- Protection Grade: IP67 (waterproof and dustproof)
- Material: Aluminum casing with blue RAL 5012 finish
- Dimensions: 85 x 211 x 60 mm
- Weight: 1.8 kg
- Standards Compliance:
  - Safety: EN 60335-1, EN 60335-2-29
  - Emission Immunity: EN 55014-1, EN 61000-6-3, EN 61000-3-2
Compatibility and Application:
- Ideal for automotive, marine, and off-grid applications requiring reliable battery charging
- Compatible with various lead-acid battery types, including AGM and GEL, as well as Li-ion batteries
- Perfect for use in demanding environments due to its robust construction and IP67 rating
Benefits:
- Maximizes battery life with intelligent charging algorithms and storage mode features
- Ensures efficient charging with minimal energy waste and low standby consumption
- Durable and silent operation with no moving parts, making it maintenance-free
- Offers convenience and control through Bluetooth connectivity, allowing real-time monitoring from a smartphone
