SKU:
BB BPC121031104R
€ 196,35
1-2 weeks delivery time
-
+

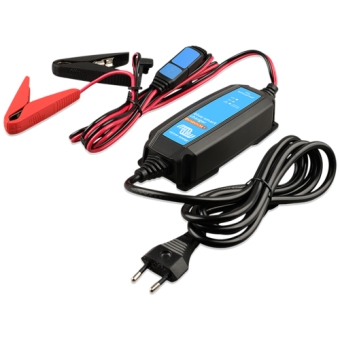

The Victron Blue Smart IP65 12V/10A (120V) is a high-performance smart charger designed for medium to large 12V batteries (30–100Ah) in automotive, marine, and off-grid systems. It offers adaptive 7-step charging for lead-acid and lithium batteries, supports 0V battery recovery, and features full Bluetooth connectivity for wireless configuration. With up to 95% efficiency and IP65 protection, it ensures optimal charging, even in harsh environments.
- Description
- Ask a Question
-
Victron Energy BPC121031104R - Blue Smart IP65 120V Battery Charger 12V/10A + DC Connector is a durable and intelligent charger engineered for professional applications. Designed for medium-sized batteries, it ensures long battery life, optimal performance, and convenient control via Bluetooth-enabled devices.
Main Features:
- 12V charger with 10A maximum output
- Low current mode (3A) for smaller batteries
- Bluetooth Smart integrated – use the VictronConnect app for full control
- Seven-step charge algorithm: Test, Bulk, Absorption, Recondition, Float, Storage, Refresh
- Automatic recovery function for deeply discharged batteries (starting from 0V)
- Compatible with AGM, GEL, Flooded lead-acid, and LiFePO₄ batteries
- Can be used as a power supply – constant-voltage mode
- Temperature-compensated charging for lead-acid batteries
- IP65 housing: dust-tight, splash-proof, and chemical-resistant
Technical Specifications:
Parameter Value Part Number BPC121031104R Input Voltage 120 VAC Input Frequency 50/60 Hz Charge Voltage – Absorption 14.4V (Normal), 14.7V (High), 14.2V (Li-ion) Charge Voltage – Float 13.8V (13.5V for Li-ion) Charge Voltage – Storage 13.2V (13.5V for Li-ion) Charge Current 10 A Low Current Mode 3 A Battery Voltage Range 0V and up (with recovery) Efficiency Up to 95% Power Consumption (Standby) < 0.5 W Back Current Drain 1 mA (0.7Ah/month) Temperature Compensation 16 mV/°C (lead-acid only) Operating Temperature Range -40°C to +60°C Humidity Max 95% (non-condensing) Enclosure IP65 (splash/dust/chemical resistant) AC Connection 1.8 m cable with US NEMA 1-15 plug Battery Connection 1.5 m red/black cable with DC connector Dimensions (H x W x D) 60 x 105 x 190 mm Weight 0.9 kg (2.0 lbs) Certifications Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
EMC: EN 55014-1/2, EN 61000-6-3, EN 61000-6-1/2/3
Applications:
- 12V automotive, marine, and off-grid batteries
- Battery maintenance for cars, vans, and boats
- Medium-sized sealed or flooded batteries (AGM, GEL)
- Backup systems and equipment power
Warranty: 5 years
Brand: Victron EnergyLooking for a different Victron Charger? Explore our full Victron Blue Smart IP65 Chargers product range.
Documents
Victron Energy Blue Smart IP65 Charger 120V Size: 1,1 Mb -
