SKU:
CN VIBPA000100010R
€ 69,56
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Victron Energy Battery Alarm GX (BPA000100010R) is a compact, cost-effective remote alarm panel for monitoring critical battery voltages in 12V or 24V systems. It features both visual and audible alarms, along with a programmable voltage threshold and hysteresis via DIP switches. A potential-free relay provides both normally open and normally closed contact outputs, allowing integration with other alarm or control systems. Ideal for marine, mobile, and off-grid battery monitoring applications.
- Description
- Ask a Question
-

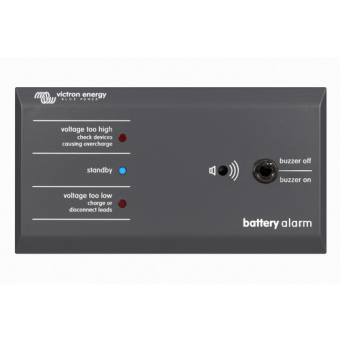

Victron Energy BPA000100010R – Battery Alarm GX
The Battery Alarm GX from Victron Energy is a compact alarm panel designed to monitor the status of battery systems and alert users in case of high or low voltage conditions. It includes both audible and visual alarms, as well as a potential-free relay output with both normally open (NO) and normally closed (NC) terminals for external control integration.
This versatile panel is programmable via DIP switches for voltage thresholds and hysteresis values. It can be configured to work with both 12V and 24V battery systems, making it ideal for a wide range of DC power applications in marine, automotive, industrial, and off-grid environments.
Key Features:
- Audible and visual alarm for high/low battery voltage alerts
- Potential-free relay output (NO and NC) for external device activation
- Programmable voltage thresholds and hysteresis via DIP switches
- Compatible with both 12V and 24V battery banks
- Compact size for easy integration in dashboards or control panels
Technical Specifications:
Parameter Details Product Code BPA000100010R System Voltage 12V or 24V (selectable via DIP switches) Alarm Type Audible and visual (LED + buzzer) Relay Output Potential-free relay with NO and NC contacts Configurable Ulow 9.5V / 10.5V / 11.5V (12V system example) Configurable Uhigh 15V / 16V / 16.5V (via DIP switches) Hysteresis Settings Up to +2.5V (12V) or +5V (24V), configurable Mounting Panel mount Connection Terminals COM, NO, NC (J1 Connector)
DIP Switch Configuration:
- A1–A6: Set the Ulow (low voltage alarm threshold)
- B6–B7: Set the Uhigh (high voltage alarm threshold)
- B4–B5: Configure hysteresis range
- A7 / B2 / B8: Set system voltage to 12V or 24V (ON = 12V)
Compatibility and Applications:
- Works with Victron Energy systems and third-party battery setups
- Ideal for marine, mobile, industrial, and off-grid applications
- Useful in setups requiring external alarm triggering or system shutdowns
Benefits:
- Protects battery banks from over-discharge and over-voltage damage
- Easy to configure for specific system requirements
- Enables integration with external monitoring or control equipment
Documents
Victron Energy Battery Alarm GX Size: 567,9 Kb -
