The Victron Energy BAT548110620 is a next-generation 51.2V 100Ah Lithium Iron Phosphate (LiFePO₄) battery, offering 5.12 kWh of energy capacity, IP65 ingress protection, and full digital monitoring via VictronConnect or GX devices. With a robust discharge current of up to 100 A continuous (200 A pulse), integrated shunt and cell balancing, this modular battery is ideal for demanding off-grid, marine, and industrial applications. Compatible with Lynx Smart BMS NG, it supports parallel and series configuration up to 25 units, enabling energy banks of up to 128 kWh at 48V nominal.
- Description
- Ask a Question
-

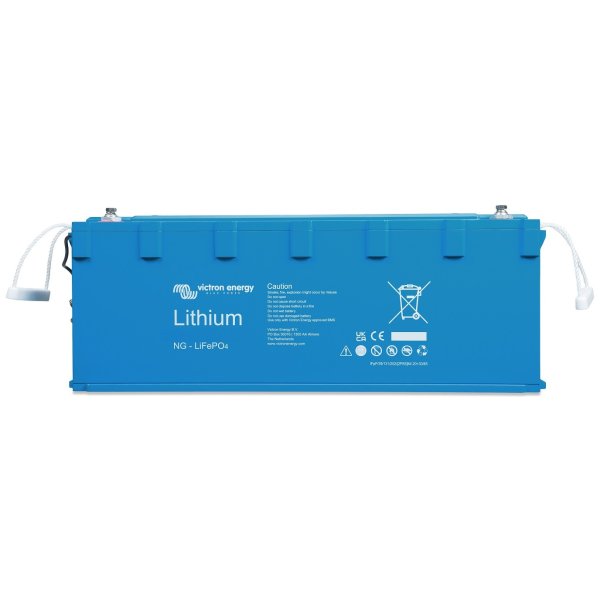

Victron Energy LiFePO₄ Battery 51.2V 100Ah NG – BAT548110620
The Victron Energy 51.2V 100Ah NG Lithium battery is a high-performance energy storage unit designed for scalable and intelligent systems. Based on LiFePO₄ chemistry, it ensures safety, longevity, and high energy efficiency. Its advanced integrated electronics offer real-time monitoring and automatic firmware updates via the Lynx Smart BMS NG, delivering intelligent battery management in both residential and professional-grade power systems.
Main Features
- Nominal Voltage: 51.2 V
- Nominal Capacity: 100 Ah (5.12 kWh)
- Cell Chemistry: Lithium Iron Phosphate (LiFePO₄)
- Cycle Life: Up to 5000 cycles @ 50% DoD
- Mounting: Brackets included, supports vertical and side positioning
- Ingress Protection: IP65 – dust-tight and protected against water jets
- Integrated shunt, cell balancing, and data interface
- Full control via VictronConnect App, GX devices, and VRM Portal
- Repairable design – cover secured with screws
Electrical Specifications
Parameter Value Nominal Voltage 51.2 V Nominal Capacity 100 Ah Nominal Energy 5120 Wh Max Continuous Discharge 100 A (1C) Max Pulse Discharge (10s) 200 A (2C) Charge Voltage Range 56.0 – 56.8 V Float Voltage 54 V Max Continuous Charge Current 100 A (1C) Max Pulse Charge (10s) 200 A (2C) Round-Trip Efficiency ~92%
Mechanical and Environmental
Parameter Value Dimensions (HxWxD) 235 x 648 x 162 mm Weight 37 kg Operating Temp (Discharge) -20°C to +50°C Operating Temp (Charge) +5°C to +50°C Storage Temp -45°C to +70°C Humidity (non-condensing) Max 95%
System Integration
- Compatible with Lynx Smart BMS NG 500 A / 1000 A
- Max. Number of Batteries in Series/Parallel: 25 units (up to 128 kWh)
- Bluetooth-enabled via BMS for configuration and diagnostics
- High-speed digital interface with M8 circular connectors
Certifications & Standards
- Cell Safety: UL1973, UL9540A, IEC62619 (pending)
- EMC: EN 61000-6-2, EN 61000-6-3
- Performance: IEC 62620 (pending)
- Automotive Compliance: ECE R10-6 (pending)
Documents
Victron Energy Lithium NG Batteries Size: 441 Kb -
