The Victron BAT524130620 is the largest-capacity Lithium NG Smart battery at 25.6V/300Ah (7680Wh). Designed for critical 24V energy systems, it supports up to 300A continuous and 600A peak discharge. With IP65 protection and full integration with the Lynx Smart BMS NG, it offers over 2500 deep cycles, advanced cell monitoring, and Bluetooth connectivity via the BMS. Weight: 52 kg.
- Description
- Ask a Question
-

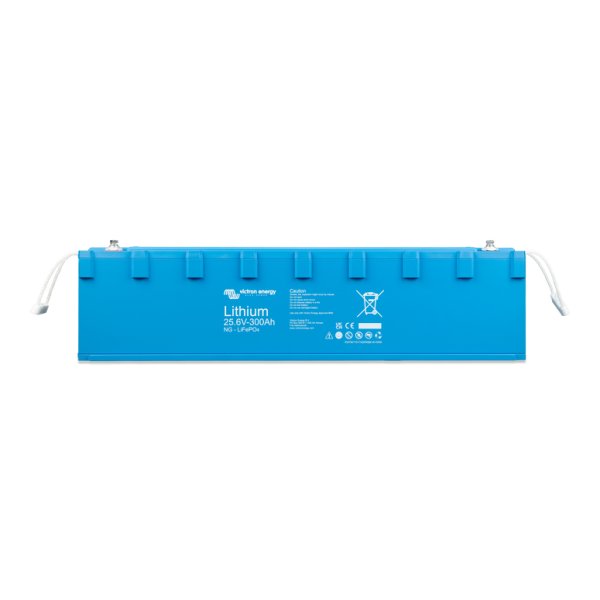

Victron Energy BAT524130620 Lithium NG Smart Battery 25.6V 300Ah (7680Wh, IP65)
The Victron BAT524130620 is a top-tier Lithium Iron Phosphate (LiFePO₄) smart battery offering 300Ah at 25.6V for a total energy capacity of 7680Wh. Engineered for large-scale 24V systems, it combines high discharge power, system-level intelligence, and a rugged IP65-rated design. Full control and diagnostics are enabled through a Lynx Smart BMS NG (required) and VictronConnect or GX devices.
Key Features:
- Nominal Voltage: 25.6 V
- Capacity: 300 Ah
- Energy: 7680 Wh
- Cycle Life: 2500 @ 80% DoD, 3000 @ 70%, 5000 @ 50%
- IP Rating: IP65 – dustproof and water-jet resistant
- Bluetooth: Through Lynx Smart BMS NG only
- Mounting: Upright or on side (not terminals-down)
Electrical Specifications:
- Max Continuous Discharge: 300 A
- Max Pulse Discharge (10s): 600 A
- Max Continuous Charge: 300 A
- Max Pulse Charge (10s): 450 A
- Charge Voltage: 28.0 – 28.8 V (recommended: 28.4 V)
- Float Voltage: 27.0 V
- End of Discharge Voltage: 22.4 V
- Round-Trip Efficiency: 92%
- Internal Resistance: ~1 mΩ
Mechanical & Environmental:
- Dimensions (HxWxD): 206 × 841 × 205 mm
- Weight: 52 kg
- Power Terminals: M8 threaded inserts (bolts included)
- BMS Interface: M8 circular connector cable (50 cm)
- Operating Temp (Discharge): –20°C to +50°C
- Operating Temp (Charge): +5°C to +50°C
- Storage Temp: –45°C to +70°C
- Humidity: Max 95% (non-condensing)
- Self-Discharge: ≤3% per month
System Integration:
- Required BMS: Lynx Smart BMS NG 500A / 1000A
- Monitoring: VictronConnect App, GX device, VRM Portal
- Firmware: Auto-updated via BMS
- Max Batteries per BMS: 50 units (up to 384 kWh @ 25.6V)
Compliance & Certifications:
- Cell Safety: UL1973, UL9540A, IEC62619 (pending)
- Battery Performance: IEC 62620 (pending)
- EMC: EN 61000-6-2 / EN 61000-6-3
- Automotive: ECE R10-6 (pending)
The Victron BAT524130620 is a high-current, high-capacity lithium battery built for professional-grade energy systems requiring uncompromising reliability, smart diagnostics, and industrial-level scalability.
